Activated Carbon Fiber Filter (ACF), FA Series

Replacement filter cartridge for water filter system

  • Home
  • Filter
  • Activated Carbon Fiber Filter (ACF)

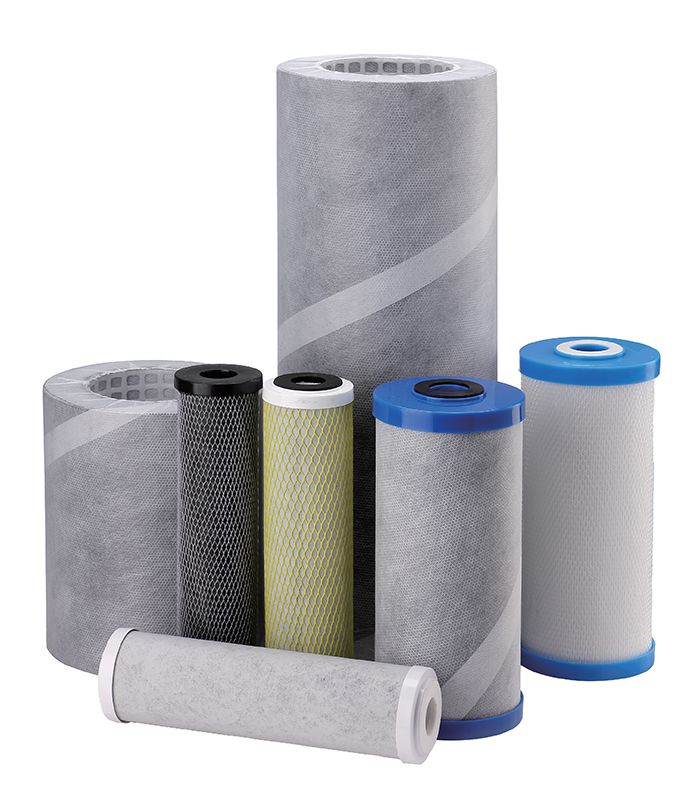

Activated Carbon Fiber Filter (ACF), FA Series

FA series replacement filter is a new generation of activated carbon fiber filter. More than 90% of ACF surface is composed of relatively uniform micropores with pore size less than 2nm. The adsorption capacity of activated carbon fiber is up to 10 times higher than that of granular activated carbon. This activated carbon fiber filter can remove contaminants at a concentration as low as PPB level.

Dimensions
End cap outer diameter (mm) 50 66 70 115 140
End cap inner diameter (mm) 16 28 28 30 80
Length (") 9.75 10 20 30 40 50
Request a Quote
Material of Components
  • Filter media: high grade ACF
  • End caps: PP
  • Internal support: PP, PE
  • Outer cover: non-woven fabric
  • Sealing gasket: NBR or silicone rubber
Features
  • Significantly remove chlorine, organic contaminants, foul odor and smell
  • Excellent adsorption capability achieved by large specific surface area
  • High flow and low water pressure drop
  • Long service time
  • No black color water
Applicable Conditions
  • Water temperature: 5-60℃
  • Inlet water pressure: 0.1-1.0 MPa
  • Nominal micro rating: 5-20µm
Applications
  • Residential water purification
  • Commercial water purification
  • Food & beverage
  • Pharmaceutical, microelectronics, electroplating
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed. Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
