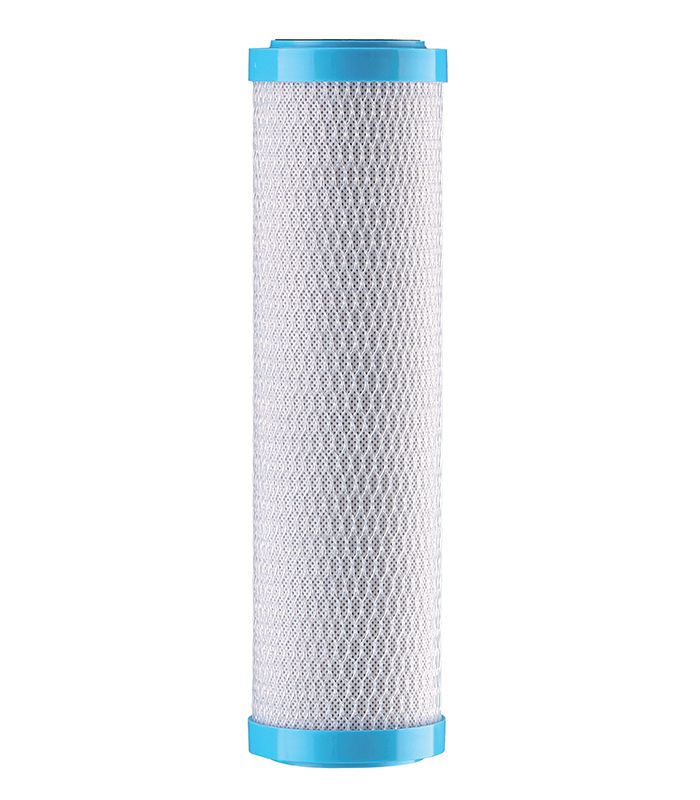

KS series anti-scale carbon block filter is manufactured with NSF certified high-purity coconut shell activated carbon and food-grade UHMWPE bonding material, effectively removing residual chlorine, THMs and most organic contaminants from the water. By utilizing safe sustained-release anti-scale formulations, it significantly enhances the water quality and prevents scaling, thereby guaranteeing clean and safe drinking water.
Dimensions
End cap outer diameter (mm) | 50 | 66 | 70 | 120 |
End cap inner diameter (mm) | 16 | 28 | 28 | 30 |
Length (") | 9.75 | 10 | 20 | 40 |
Request a Quote
Material of Components
- Filter media: high grade coconut shell carbon powder, safe anti-scale formulations
- End caps: PP
- Sealing gasket: NBR or silicone rubber
- Inner and outer wraps: PP
- Netting: PE
Features
- Significantly remove chlorine, organic contaminants, foul odor and smell
- Effectively reduce particles
- High dirt holding capacity
- Prevent water from scaling
- No black color water resulted from carbon powder leakage
Applicable Conditions
- Water temperature: 3-45℃
- Inlet water pressure: 0.1-0.6 MPa
- Nominal micro rating: 5-10µm
Applications
- Point of use, whole house water purification, commercial water purification
- Compatible with residential UF or RO water purifier
- Used with electric water heater, floor heating system, solar water heater
- Washing machine, smart toilet
- Beverage, dairy, medicine...
