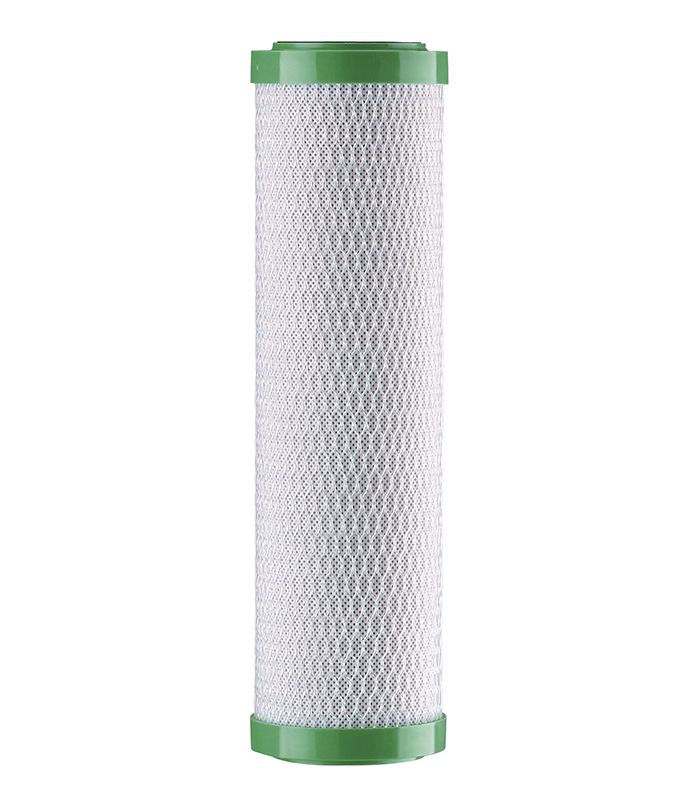

KB series anti-bacterial carbon block filter can effectively remove residual chlorine, THMs and the majority of organic contaminants. It does this by using NSF certified high-purity coconut shell activated carbon and food-grade UHMWPE bonding material. With anti-bacterial formulations, this carbon block filter inhibits microorganism growth therefore resulting in a marked increase in the quality of the drinking water.
Dimensions
| End cap outer diameter (mm) | 50 | 66 | 70 |
| End cap inner diameter (mm) | 16 | 28 | 28 |
| Length (") | 9.75 | 10 | 20 |
Material of Components
- Filter media: high grade coconut shell carbon powder, nano anti-bacterial formulation
- End caps: PP
- Sealing gasket: NBR or silicone rubber
- Inner and outer wraps: PP
- Netting: PE
Features
- Significantly remove chlorine, organic contaminants, foul odor and smell
- Effectively reduce particles and colloids
- High dirt holding capacity
- With anti-bacterial function
- No black color water resulted from carbon powder leakage
Applicable Conditions
- Water temperature: 3-45℃
- Inlet water pressure: 0.1-0.6 MPa
- Nominal micro rating: 1-5µm
Applications
- Residential water purification, outdoor water purification
- Compatible with UF water purifier
- Beverage, dairy, medicine...
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed.
Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
