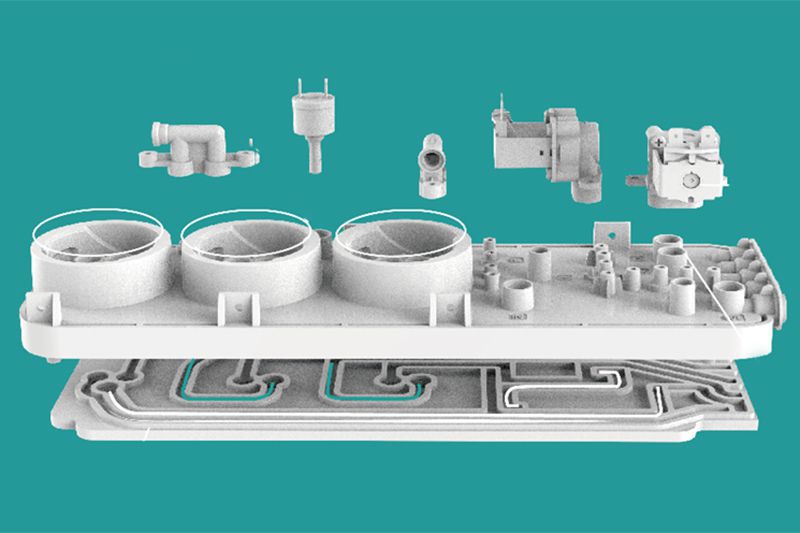

- High efficiency connection
- High pressure switch
- Non-return valve
- Drain water solenoid valve
- Feed water solenoid valve
- Waterway board
High pressure bearing capacity of 32kg without causing water leakage
99% reduction in potential water leakage
6S compact waterway board features an ultra-simple design that enables the traditional water filter system with more than 80 components and more than 40 connection ports to be significantly simplified to approximately 20 components and 13 quick connection ports. Therefore, the internal structure of the water filtration system has been drastically simplified, and smaller in size.
Water filter system reduction in size by more than half
The ultra-simple waterway board with 13 connection ports adopts the integrated water circuit technology known as a mature technology within the industry, which not only significantly reduces the size of the water filter system but also allows for more personalized appearance to adapt to users' individual preferences. Aibote is at the forefront of the industry to bring you the benefits of new era of water filter system.
- Quick filter replacement within 3 seconds
- Double locking
- Push-fit connection
- Multi-stage filtration
- Smart double water locking design
Zero installation and self cleaning, 50% reduction in filter cartridge size
Patented structure invention, smaller filter cartridge size

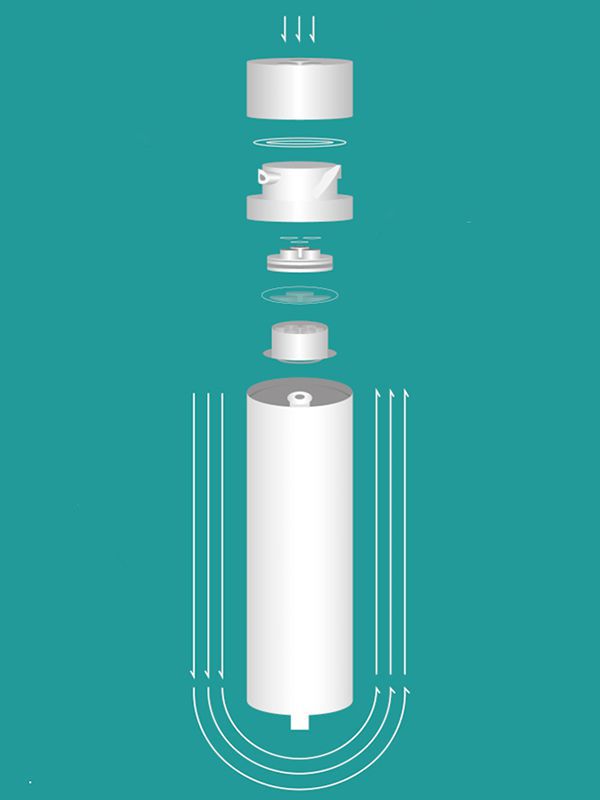

The latest generation of composite filter cartridge technology from Aibote makes it possible to connect two individual filter cartridges in series into one filter housing, and a structure of two independent water passageways is formed thanks to the center tube set in the middle of the filter housing, giving two water inlets and two water outlets. A multi-layer design efficiently prevents carbon powder and impurities from overflowing. The composite filter cartridge is truly small in size, free of installation, free of cleaning and more environmentally friendly.
Double locking, greater convenience and assurance
Self-locking water outlet ensures no leaks when replacing filter cartridge. The filter cartridge housing port is sealed by rotary seal plate and fixed plate located at the opening of the filter housing, thus enabling the both water outlets of filter housing and waterway board to be closed simultaneously. Therefore, filter cartridge can be easily changed without causing water overflowing as well as secondary pollution.
Free installation, self cleaning and easy filter replacement within 3 seconds
Push-fit filter cartridge makes replacement incredibly easy. Aibote's quick connection design of push-fit filter cartridge makes changing filter cartridges as simple as turning a switch, it only takes 3 seconds to change a filter cartridge.

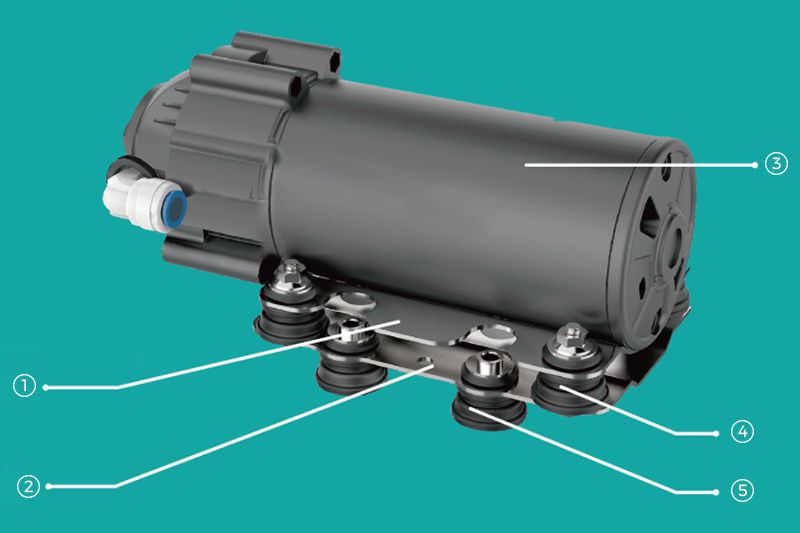

- First shock absorber
- Second shock absorber
- Booster pump
- First silicone leg
- Second silicone leg
Aibote's double shock absorption technology can effectively lessen the noise brought on by the impact of water flow and the operation of the booster pump. With the installation of double-layer shock absorption module, the vibration of the booster pump can be greatly reduced thereby avoiding the noise problem that often occurs in the conventional structure utilizing a single-layer support to connect the booster pump with the shell.

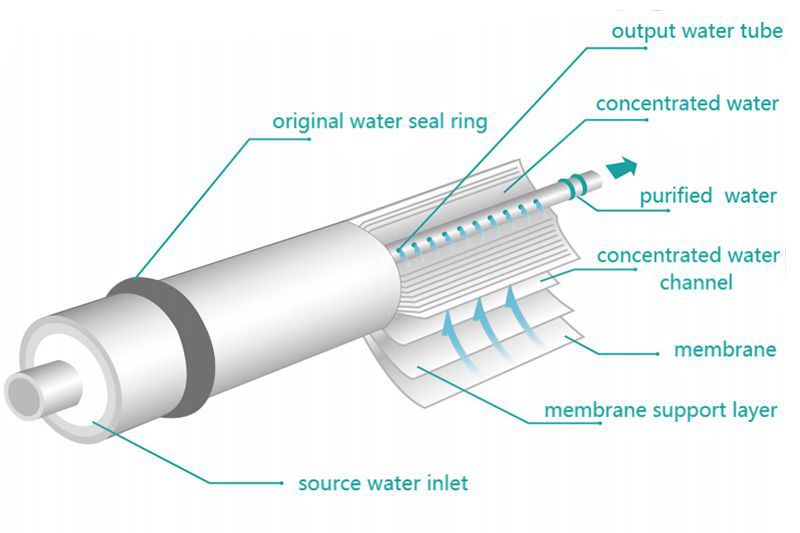

- Raw water seal ring
- Water inlet
- Output water tube
- Concentrated water
- Purified water
- Concentrated water passageway
- Membrane support layer
Reverse osmosis, or simply names as RO, is a currently advanced and energy-efficient membrane separation technology. It's principle is that other substances can not pass through the semi-permeable membrane when the pressure is greater than osmotic pressure, thereby separating these substances and water. Because the pore size of RO membrane is extremely small, only one ten thousandths of one micron (0.0001 microns), so that substances such as dissolved salts, colloids, microorganisms, bacteria, organic matter, heavy metals and other harmful substances in water can be effectively removed. The filtration rate of RO membrane can reach 97%-98%, making it the most commonly used water desalination technology in water purification equipment.
