- Filtration System PCR filter: PP+carbon;
RO filter - Purified/Drain Ratio 2:1 pure to drain
- Customizable FunctionsFaucet style
Various purified water flow (400 GPD-600 GPD) - Features High flow with tankless and slim design
High filtered water yield
Integrated water manifold module, high-quality assurance
Intelligent control: auto flushing, filter life indication, fault alert
Composite filter development, reducing cost and facilitating filter replacement
Long service lifespan of RO filter, significantly reducing the cost of use
Low operating noise (less than 55dBA) - Optional Faucet Types Single-handle faucet
Double-handle faucet
LED ring faucet
Smart display faucet
Mini RO water filter system is sometimes called compact undersink RO water filtration system since it is small in size and more affordable in comparison to other types of undersink water filters used in kitchen. With a filter element configuration of PPC+RO, this mini RO water filter system can work with single-handle faucet or single-handle smart display faucet to deliver purified water, with a flow rate ranging from 400 to 600 GPD.
Model Options

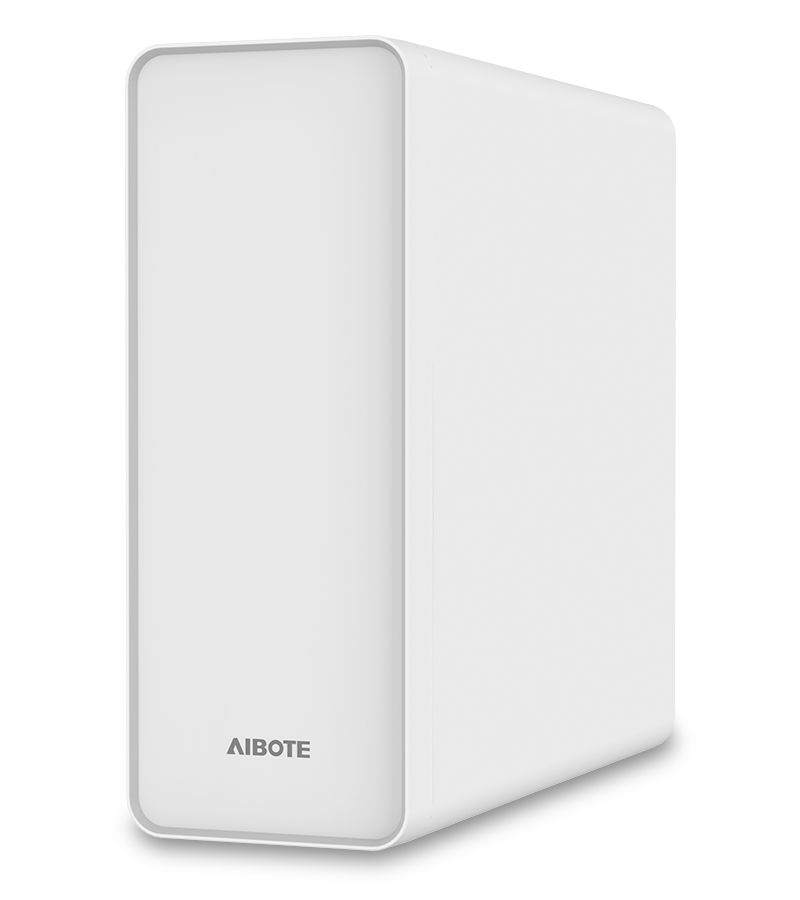

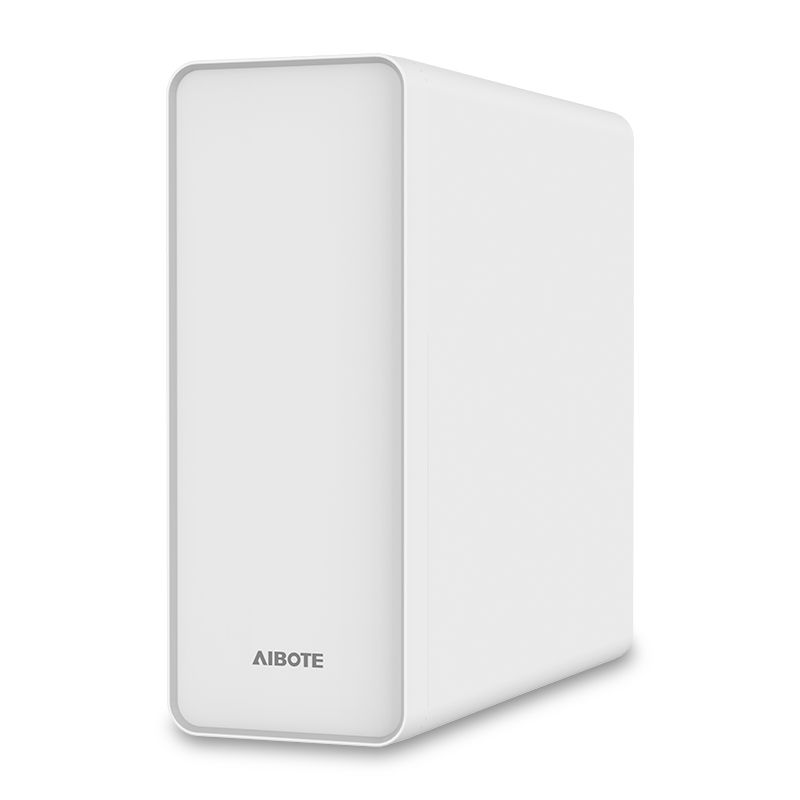

- Model AW-RL01
- Mini RO Water Purifier (tankless reverse osmosis system)

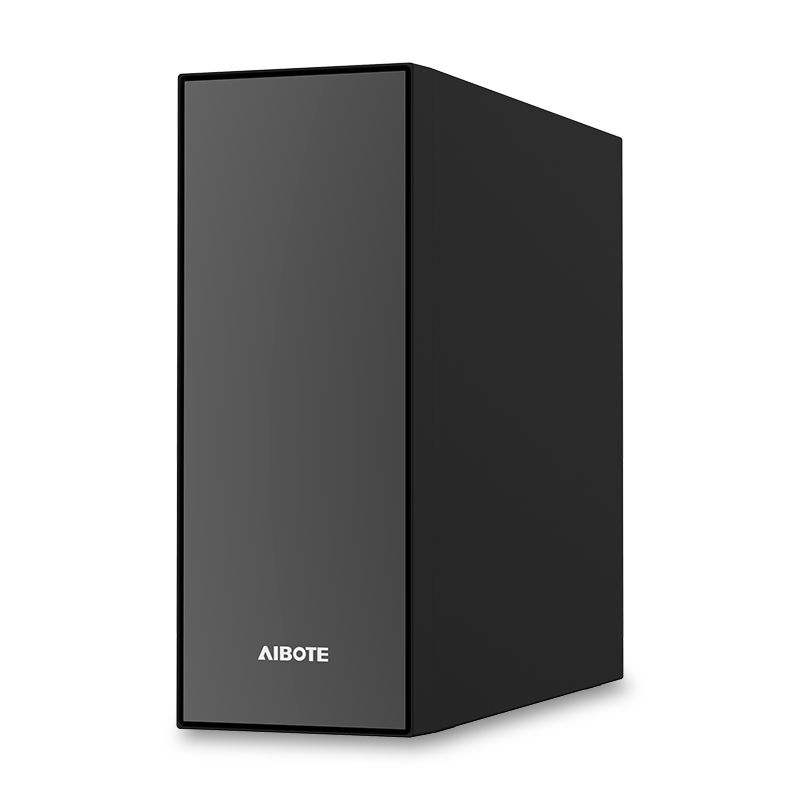

- Model AW-RL02
- Mini RO Water Purifier (tankless reverse osmosis system)
Specifications
| RO flow available | ||
| Power | 60W | 80W |
| Voltage | 24V | 24V |
| Purified water flow rate | 1.04L/min | 1.56L/min |
| RO permeate: drain | 2:1 | |
| Filtration stages | 3 | |

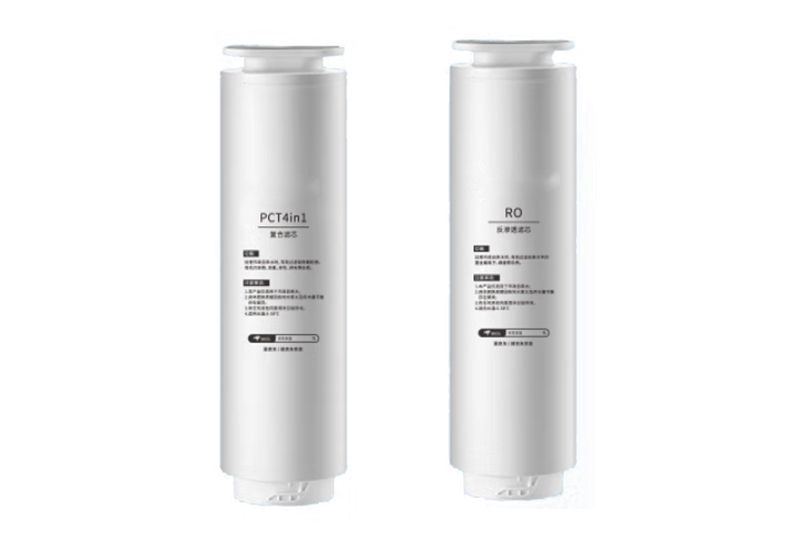

| First filter service life | PPC (PP cotton+carbon)/9-15months | |
| second filter service life | RO (Reverse Osmosis)/30-48months | |
| Min. input water pressure | 0.1Mpa | |
| Max. input water pressure | 0.4Mpa | |
| Working pressure | 0.4-0.8MPa | |
| Inlet water quality | Municipal water | |
| Inlet water temperature | 5-38℃ | |
| Water output capacity | Single outlet: 6000L | |
| Ambient temperature | 4-40℃ | |
| Installation | Under the sink | |
| Gross weight | 10.5kg | |
| Product size | 347*120*310mm | |
| Carton size | 695*192*465mm | |
| Container (20FT/40GQ/40HQ) | 510pcs/1035pcs/1178pcs | |
| The above data is obtained from our laboratory test results. Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use. |
||
Details

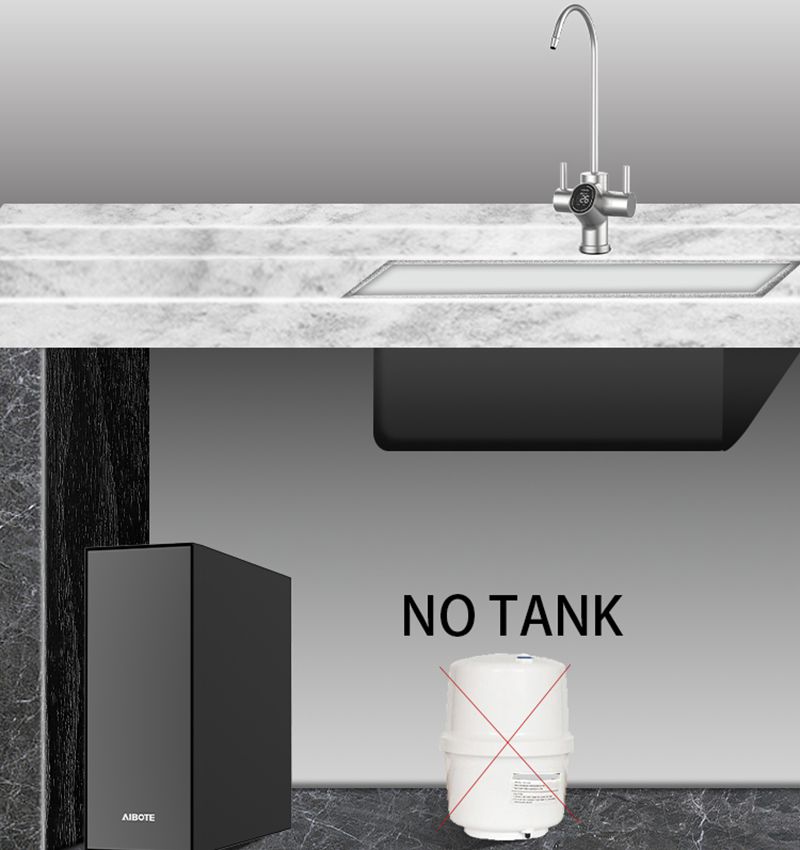

Compact and tankless design preserves enough under-sink storage space for other items.

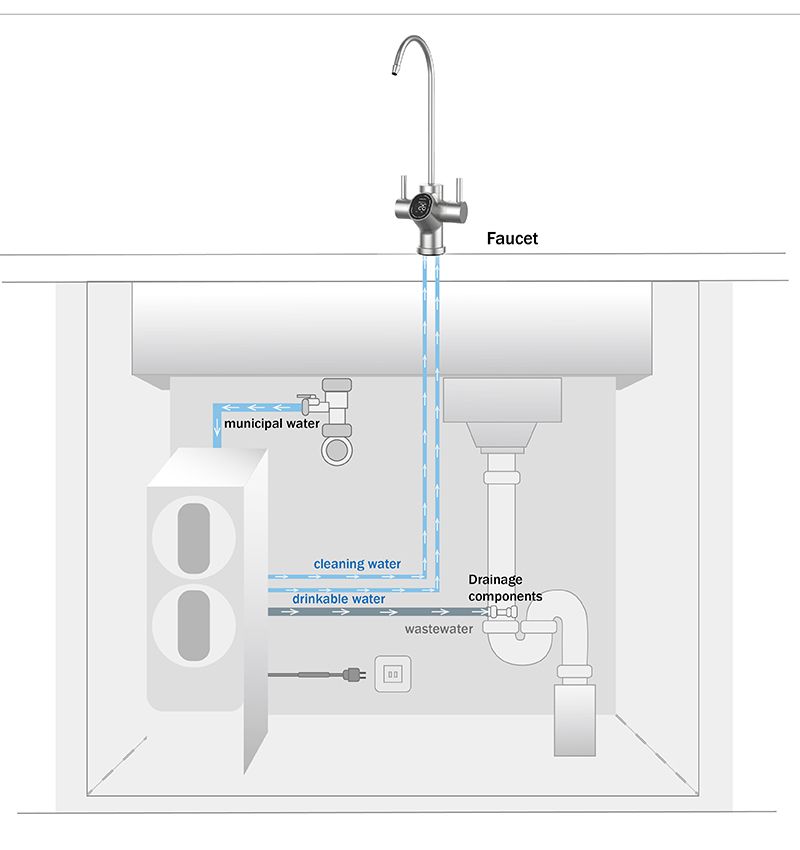

Easy installation, DIY filter replacement

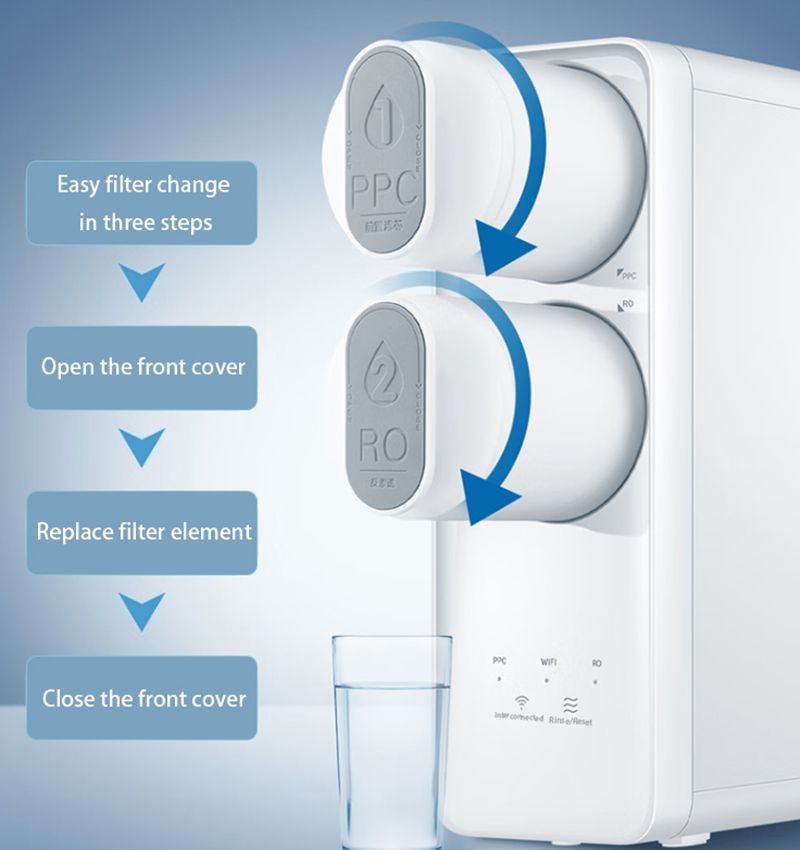

Easy replacement of filter cartridge

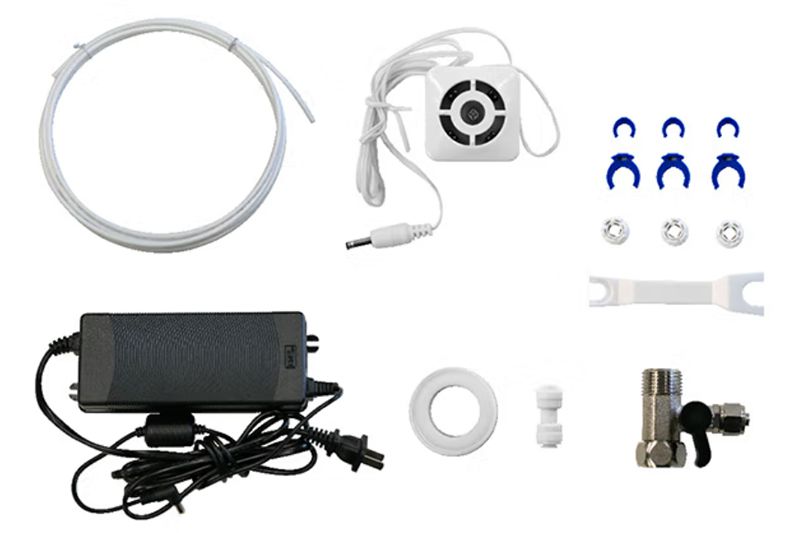

Accessories
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed.
Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
