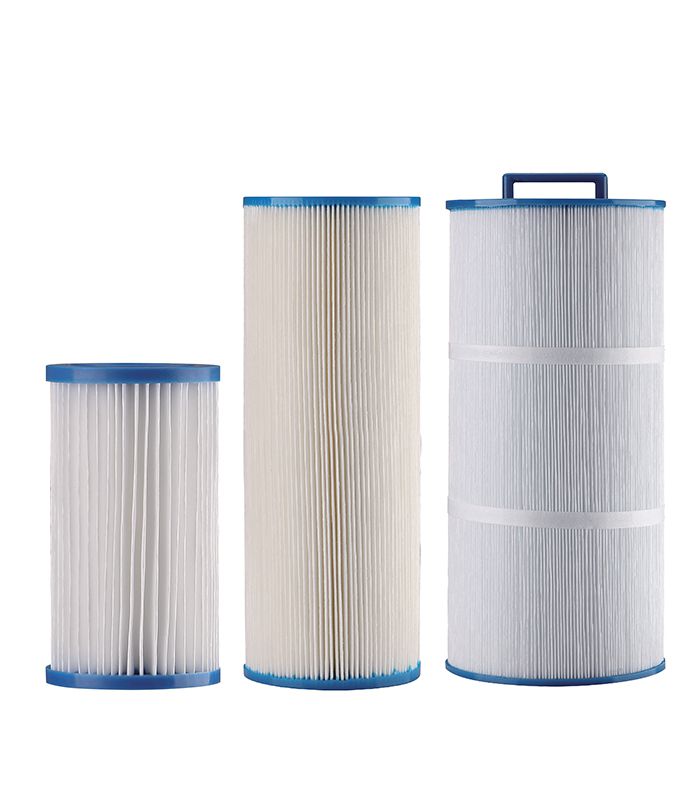

This pleated filter cartridge is fabricated by folding antibacterial polyester fiber material into multiple layers. The replacement filter can have either the end caps made of PP material or the soft end caps that are AB cured. The pleated filter possesses excellent mechanical strength, light resistance, and high-temperature resistance. Furthermore, the filter cartridge can be reused through regular cleaning, thereby reducing both the frequency of replacement and the total usage cost.
Dimensions
End cap outer diameter (mm) | 143 | 66 | 90 | 115 | 143 |
End cap inner diameter (mm) | 16 | 28 | 30 | 50 | 50 |
Length (") | 9.75 | 10 | 100 | 80 | 253 |
Request a Quote
Material of Components
- Filter material: PP, polyester film
- End cap: PP, PO
- Sealing gasket: NBR or silicone rubber
- Inner support: PE
Features
- High rejection rate and large dirt holding capacity
- High flow and low water pressure drop
- Can easily be cleaned for reuse
Applicable Conditions
- Water temperature: 3-45℃
- Inlet water pressure: 0.1-0.6 MPa
- Nominal micro rating: 5-20µm
Applications
- Home swimming pool
- Public swimming pool
- Children SPA water circulation
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed.
Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
