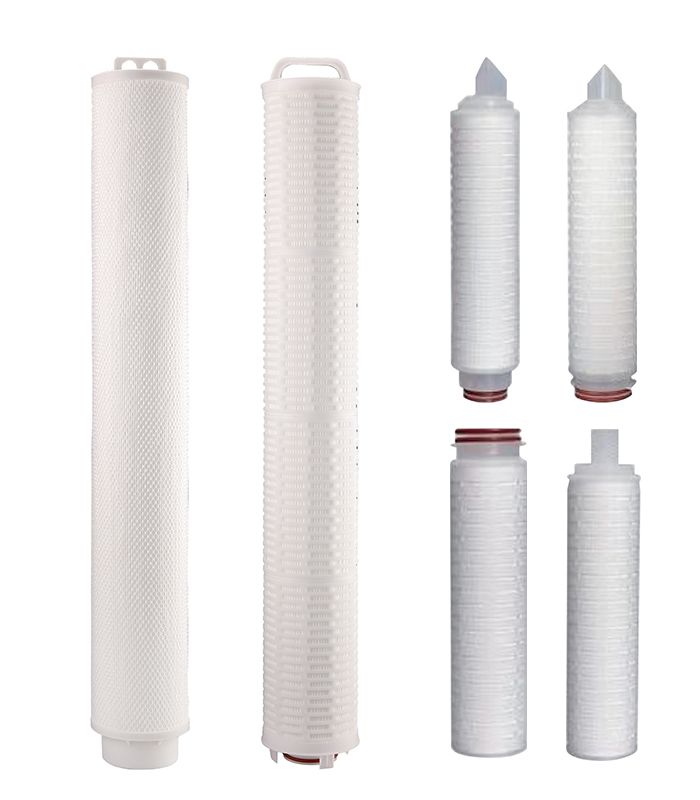

The high-flow pleated filter element generally adopts deep fine polypropylene, polyester, PTFE or glass fiber membrane as the filter material, with the flow rate up to 1300L/min. Due to its composite folding of multiple layers of filtration material and the design of multi-layer gradient precision filtration, it has a much high dirt and dust holding capacity, making it the best choice for industrial water treatment.
Dimensions
End cap outer diameter (mm) | 10 |
End cap inner diameter (mm) | 80 |
Length (") | 40 |
Request a Quote
Material of Components
- Filter material: PP, PES, PTFE, GF
- End cap: PP
- Sealing gasket: NBR or silicone rubber
- Inner support: PP
- Outer support: PP
Features
- High rejection rate and large dirt holding capacity
- High removal rate for particles, colloids
- High flow and low water pressure drop
- Filtration precision can easily be adjusted
Applicable Conditions
- Maximum operating temperature:100oC
- Maximum operating pressure difference: 0.25 MPa
- Suggested pressure difference for replacement: 0.22 MPa
- Nominal micro rating: 5-20µm
Applications
- PCB ultra pure water, deionized water
- Petroleum chemical, organic solvents, ink filtration
- Metal cutting fluid, electroplating solution, pharmaceutical industry
- Food & beverage, oilfield injection water filtration
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed.
Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
