3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)

Reverse osmosis system with horizontal filter placement design

Aibote drives innovation with technologies like integrated waterways, composite filter cartridges, zero stale water design, leak prevention, and WiFi remote control, ensuring efficient water filtration and an enhanced user experience.
  • Home
  • Water Purifier
  • Under Sink Water Filter Systems
  • 3-Stage RO Water Filter System
  • 400-600GPD (Horizontal Filter Placement)

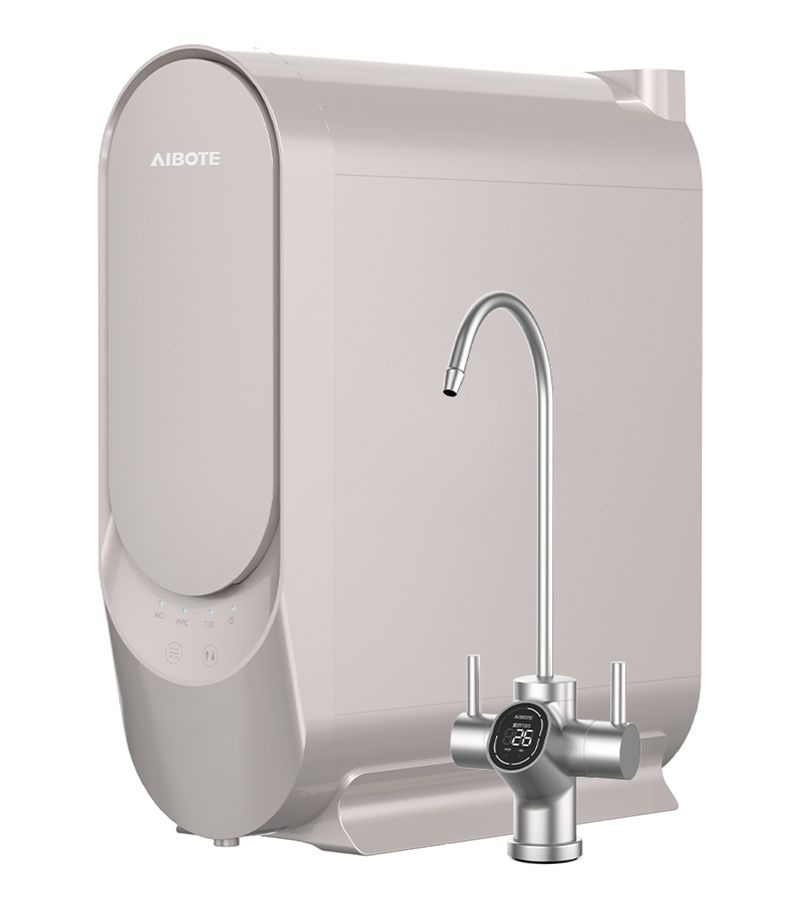

3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)
  • Model AW-RE01
  • Filtration SystemPPC filter: PP+C+PP composite filter
    RO filter: Reverse osmosis membrane filter
    T33 + Alkaline filter: T33 carbon block with alkaline
  • Purified/Drain Ratio 2:1 pure to drain
  • Functions Integrated water manifold modular platform, delicate design, minimizing the risk of water leakage;
    Four-stage purification, automatic flushing and control;
    Real-time water quality monitoring;
    3-second DIY filter cartridge replacement, free and easy;
    Automatic water lock when filters are being replaced
    IOT (WIFI) remote control (optional)
  • Optional Faucet Types Single-handle faucet
    Double-handle faucet
    LED ring faucet
    Smart display faucet
Request a Quote

Adding alkaline substances to neutralize weak acid water for more healthy water.

Our 500GPD alkaline RO system is designed to solve this challenge by adding alkaline substances into the T33 filter cartridge to keep pH value in water within a range between 7.35-7.45, thereby helping organs in our body work properly.

  • Specially-designed integrated water manifold module coupled with leak detector can prevent water leakage
  • You will be reminded of the filtration cartridge lifetime via the display in a timely manner, whenever you want to know
  • Aibote's patented double-layer shock absorption design ensures quiet operation by keeping the noise level below 50 dBA.
Specifications
RO flow available 400GPD 600GPD
Power 60W 80W
Voltage 24V 24V
Purified water flow rate 1.04L/min 1.56L/min
RO permeate: drain 2:1
Filtration stages 4
First filter service life PPC/9-15months
Second filter service life RO/30-48months
Third filter service life Coconut shell carbon/12-18months
Min. input water pressure 0.1Mpa
Max. input water pressure 0.4Mpa
Working pressure 0.4-0.8MPa
Inlet water quality Municipal water
Inlet water temperature 5-38℃
Water output capacity Single outlet: 6000L (Two outlets: 6000L+6000L)
Ambient temperature 4-40℃
Installation Under the sink
Gross weight 12.5kg
Product size 460*135*360mm
Carton size 695*192*465mm
Container (20FT/40GQ/40HQ) 510pcs/1035pcs/1178pcs
The above data is obtained from our laboratory test results.
Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed. Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
