- Filtration System PPC filter: PP+Carbon+PP composite filter
UF filter: Ultra-filtration membrane filter
T33 filter: T33 post carbon block - Flow Rate 600GPD (1.5L/min)
- Features No drain, no electricity required;
Easy filter replacement;
Compact size for half of A4 paper;
2-year UF membrane lifetime;
Integrated water circuit, no leaking risk;
Economical, Efficient
Ultra-filtration water system is affordable than RO system. Compared with a RO water filter system, the ultra-filtration water system keeps salutary minerals while keeping out contaminants and particles ranging from 0.01-0.1 micron, such as bacteria, viruses, parasites and harmful heavy metal ions. The ultra-filtration water filter is equipped with a post carbon block to add rare mineral elements into water, such as selenium and strontium.
- The ultra-filtration water filter is equipped with an integrated water circuit to prevent water leakage;
- Large water flow, meet household daily demands;
- Noise-reduction design, noise level as low as 40 dB;
- Compact design, easy installation;
Specifications
| Model | ABT-UF2201 |
| Dimensions | 285*263.5*99 mm |
| Flow rate | 600GPD (1.5L/min) |
| Filter cartridge | PPC+UF+T33+Alkaline |
| Filtration stage | 4-stage / 5-stage |
| Filter lifetime | PPC: 6-12 months UF: 24-48 months (depending on the quality of water source) T33: 12-24 months |
| Filter cartridge Type | Disposable filter cartridge |
| Voltage | 24V |
| Feed water pressure | 0.1-0.4MPa |
| Working pressure | 0.4-0.8MPa |
| Feed water temperature | 5-38℃ |
| Ambient temperature | 4-40℃ |
| Water output | Single outlet: 4000L (double outlet: 4000L+4000L) |
| Optional faucet | Single-handle faucet Double-handle faucet Single-handle / double-handle smart monitor faucet |
| Functions (customizable) | Filter life indicator Original tap water indicator Purified water indicator Operation indicator Full tank indicator Malfunction indicator "Select" button "Flush" button "Reset" button |
| Water leakage alert | Full screen flashing, beeping |
Water Filter System Installation and Filter Cartridge Replacement
Easy installation, DIY installation

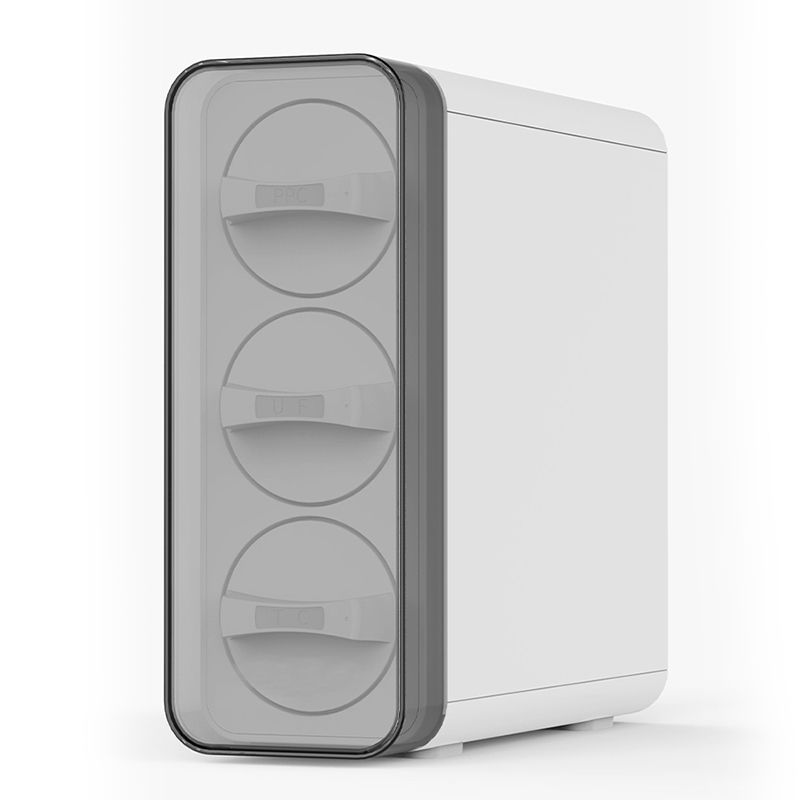

Easy change of filter cartridge
Economical and environmentally friendly, no need for bottled water and thus less plastic waste.
Quiet operation, no disturbance.
Certificates
- China Water Efficiency Label
- CE Certificate
- Validation of National Health Commission of PRC
- NSF International
- ISO 9001 Quality Management System
Ultra-filtration Water System and Parts
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed.
Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
