3-Stage Tankless Under Sink RO Water Filter System (400-1200GPD)

Reverse osmosis system with horizontal filter placement design

Aibote drives innovation with technologies like integrated waterways, composite filter cartridges, zero stale water design, leak prevention, and WiFi remote control, ensuring efficient water filtration and an enhanced user experience.
  • Home
  • Water Purifier
  • Under Sink Water Filter Systems
  • 3-Stage RO Water Filter System
  • 400-1200GPD (Horizontal Filter Placement)

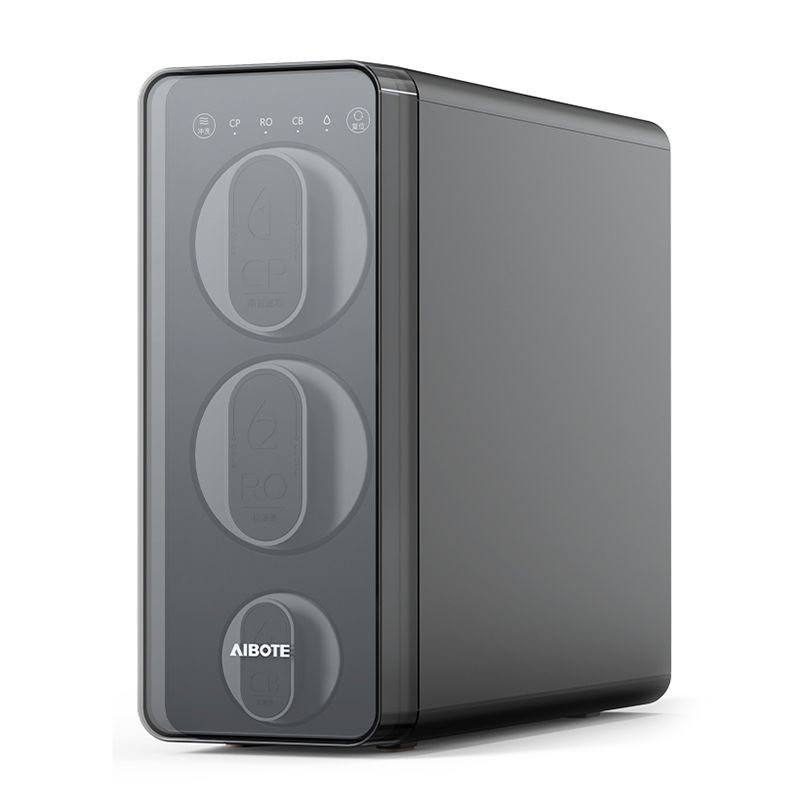

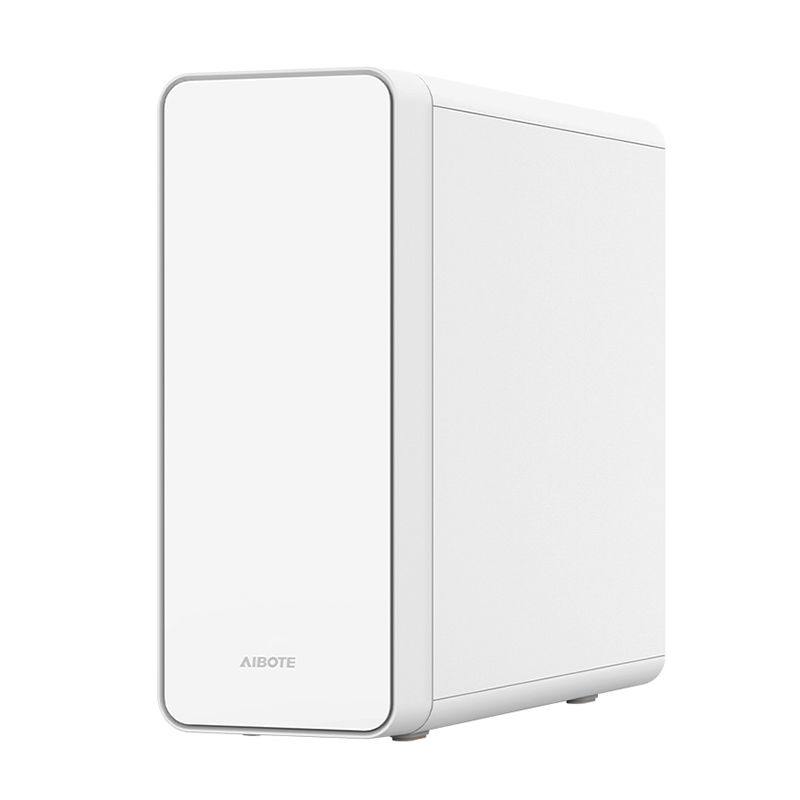

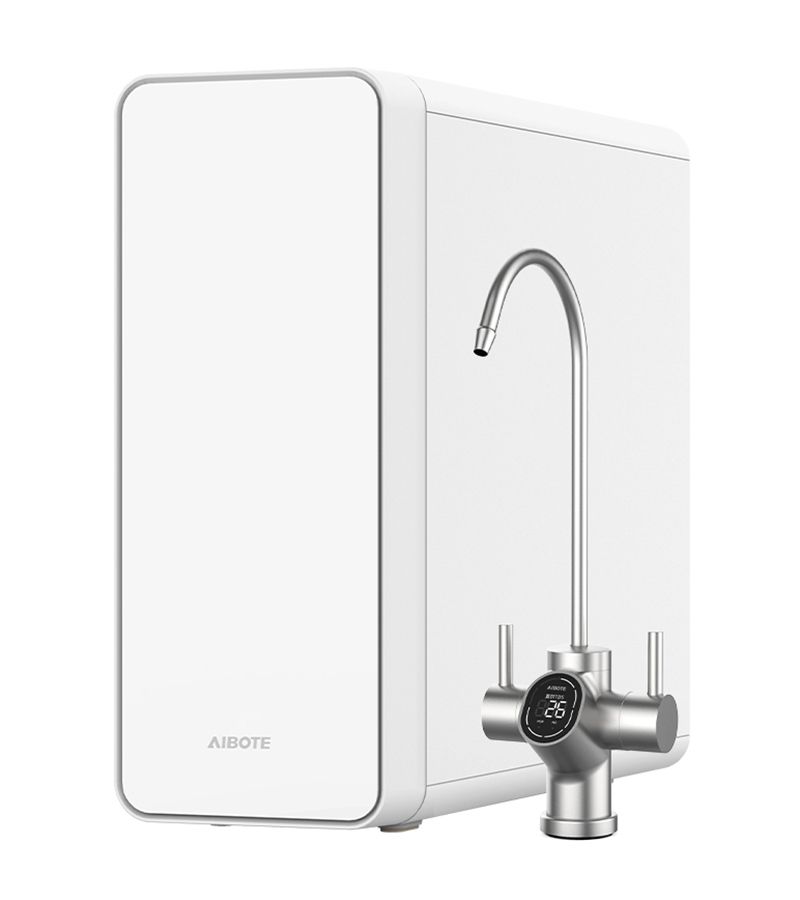

3-Stage Tankless Under Sink RO Water Filter System (400-1200GPD)
  • Filtration SystemCP+RO+CB
  • Purified/Drain Ratio 2:1
  • Functions Zero stale water design ensuring every cup of water fresh and clean
    Double dispensing design, meeting the demand of direct drinking and living water
    High flow water purification, drinking without waiting
    High flow rate, ensuring your drinking freely at any time without waiting
    Low operating noise achieved by multi noise reduction technology
    Long-lasting cartridge, significantly reducing your cost of using
    Free from BPA in the entire water way
Request a Quote

This RO water filter system is a kind of conventional water purification system with three separate filters (CP, RO, CB) to deliver purified drinking water. The CP filter consists of PP cotton, a compressed activated carbon block and a second layer of high-precision PP cotton that can remove sand, rust, sediments and odors. And other contaminants like heavy minerals, bacteria and virus would be eliminated by the RO membrane filter with filtration precision of 0.0001um-0.001um. Nothing but insipid water is left after these processes. Therefore we place a CB filtration cartridge that can add minerals essential to people’s health back into water. After that, you would have weak alkaline drinking water.

Model Options
3-Stage Tankless Under Sink RO Water Filter System (400-1200GPD)
  • Model AW-RK01
Request a Quote
3-Stage Tankless Under Sink RO Water Filter System (400-1200GPD)
  • Model AW-RK02
Request a Quote
Specifications
RO flow available 400GPD 600GPD 800GPD 1000GPD 1200GPD
Power 60W 80W 100W 130W 150W
Voltage 24V 24V 24V 24V 36V
Purified water flow rate 1.04L/min 1.56L/min 2.08L/min 2.60L/min 3.12L/min
RO permeate: drain 2:1
Filtration stages 4
First filter service life CP/9-15months
Second filter service life RO/30-48months
Third filter service life CB/12-18months
Min. input water pressure 0.1Mpa
Max. input water pressure 0.4Mpa
Inlet water quality Municipal water
Inlet water temperature 5-38℃
Ambient temperature 4-40℃
Installation Under the sink
Gross weight 11.7kg 16.0kg
Product size 392*135*393mm 457*135*393mm
Carton size 695*192*465mm 815*192*495mm
Container (20FT/40GQ/40HQ) 510pcs/1035pcs/1178pcs 405pcs/812pcs/940pcs
The above data is obtained from our laboratory test results.
Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.
Features
  • Two outlets for dual use, this tankless water filter system has two water circuits to deliver two types of filtered water. The water filtered through CP filter cartridge is used for washing fruits and vegetables, while the water filtered by CP+RO+CB composite filter is safe to drink.
  • Specially-designed integrated water circuit effectively prevents water leakage
  • Fast-flow, fresh and great tasting water perfect for drinking and cooking
  • Quiet operation with noise level of less than 40dB
  • Small size of the tankless water filter system saves space in your kitchen
  • Timely reminding of filter cartridge lifetime to ensure safe and healthy drinking water
Optional Faucet Types
  • Single outlet faucet
  • Dual outlet faucet
  • LED ring faucet
  • Smart faucet
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed. Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
