3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)

Reverse osmosis system with vertical filter placement design

Aibote drives innovation with technologies like integrated waterways, composite filter cartridges, zero stale water design, leak prevention, and WiFi remote control, ensuring efficient water filtration and an enhanced user experience.
  • Home
  • Water Purifier
  • Under Sink Water Filter Systems
  • 3-Stage RO Water Filter System
  • 400-600GPD (Vertical Filter Placement)
3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)
  • Filtration System

    Option 1
    PPC+RO+T33 (coconut shell carton)

    Option 2
    PPC+PPC+RO

  • Purified/Drain Ratio 2:1 pure to drain
  • Functions Integrated water manifold modular platform, delicate design, minimizing the risk of water leakage;
    Four-stage purification, automatic flushing and control;
    Real-time water quality monitoring;
    3-second DIY filter cartridge replacement, free and easy;
    Automatic water lock when filters are being replaced
    IOT (WIFI) remote control (optional)
  • Optional Faucet Types Single outlet faucet
    Dual outlet faucet
    LED ring faucet
    Smart faucet
Request a Quote
3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)

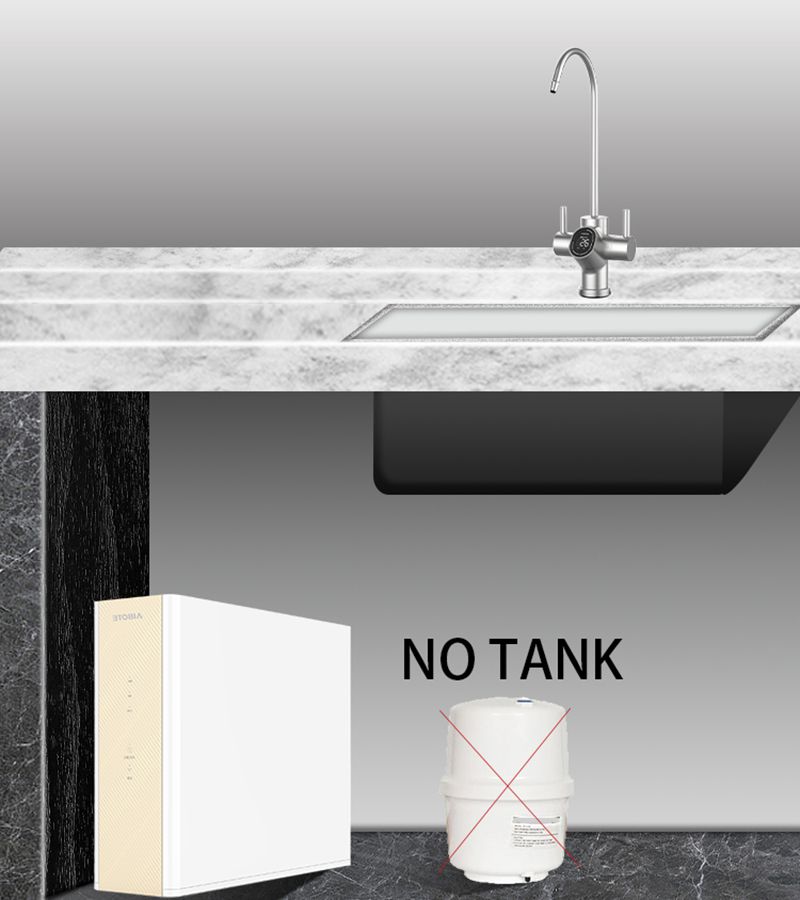

Reverse osmosis system with tankless design for highly purified drinking water
This RO water filter system is a kind of conventional water purification system with three separate filters (PPC, RO, T33) to deliver purified drinking water. The PPC filter consists of PP cotton, a compressed activated carbon block and a second layer of high-precision PP cotton that can remove sand, rust, sediments and odors. And other contaminants like heavy minerals, bacteria and virus would be eliminated by the RO membrane filter with filtration precision of 0.0001um-0.001um. Nothing but insipid water is left after these processes. Therefore we place a T33 filtration cartridge that can add minerals essential to people’s health back into water. After that, you would have weak alkaline drinking water.

Two outlets for dual use
This tankless water filter system has two water circuits to deliver two types of filtered water. The water filtered through PPC filter cartridge is used for washing fruits and vegetables, while the water filtered by PPC+RO+T33 composite filter is safe to drink.

  • Specially-designed integrated water manifold module effectively prevents water leakage
  • Fast-flow, fresh and great tasting water perfect for drinking and cooking
  • Quiet operation with noise level of less than 40dBA
  • Small size of the tankless water filter system saves space in your kitchen
  • Real-time monitoring of water TDS, which can be read via smart display faucet
  • Timely reminding of filter cartridge lifetime to ensure safe and healthy drinking water
Model Options
3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)
  • Model AW-RA03
Request a Quote
3-Stage Tankless Under Sink RO Water Filter System (400-600GPD)
  • Model AW-RA06
Request a Quote
Specifications
RO flow available 400GPD 600GPD 800GPD
Power 60W 80W 100W
Voltage 24V 24V 24V
Purified water flow rate 1.04L/min 1.56L/min 2.08L/min
RO permeate: drain 2:1
Filtration stages 4
First filter service life PPC/9-15months
Second filter service life RO/30-48months
Third filter service life Coconut shell carbon/12-18months
Min. input water pressure 0.1Mpa
Max. input water pressure 0.4Mpa
Working pressure 0.4-0.8MPa
Inlet water quality Municipal water
Inlet water temperature 5-38℃
Water output capacity Single outlet: 6000L (Two outlets: 6000L+6000L)
Ambient temperature 4-40℃
Installation Under the sink
Gross weight 13.5kg
Product size 455*135*395mm
Carton size 695*192*465mm
Container (20FT/40GQ/40HQ) 510pcs/1035pcs/1178pcs
The above data is obtained from our laboratory test results.
Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed. Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
