1000GPD Reverse Osmosis System with Remineralization

Under Sink RO Water Filtration System

  • Home
  • Products
  • Under Sink RO Water Filtration System
  • Remineralizing RO Water Filter System
  • 1000GPD Remineralizing RO System

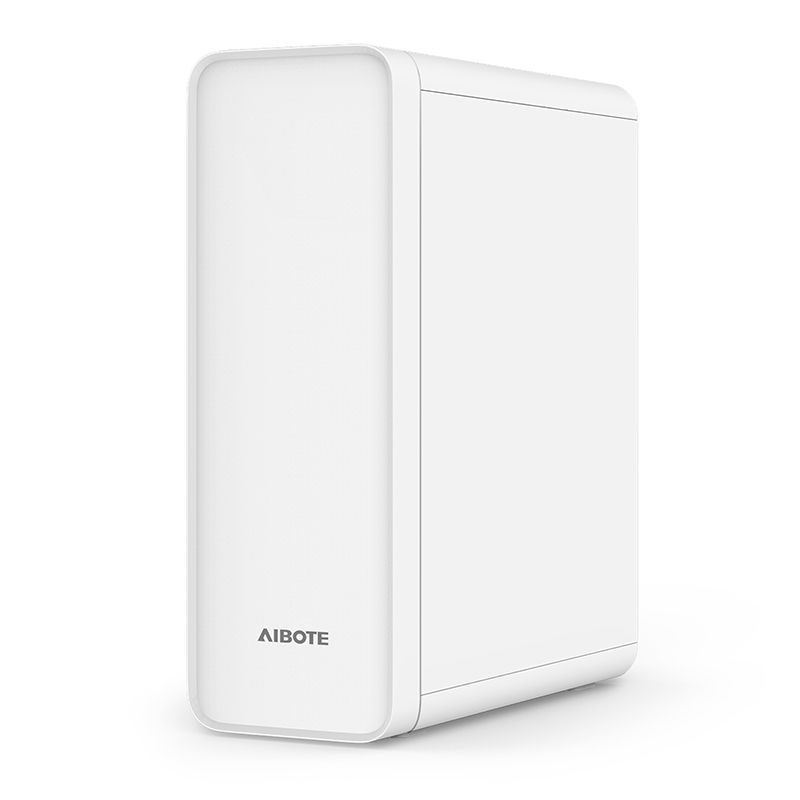

1000GPD Reverse Osmosis System with Remineralization
  • Filtration System PCT filter: PP+C+PP+T33 composite filter
    RO filter: Reverse osmosis membrane filter
  • Flow Rate 1000GPD (2.60L/min), flow rate availability 400GPD-1200GPD
  • Purified/Drain Ratio 2:1 pure to drain
  • Personalized Functions High flow rate, 3.5s to fill a 150ml cup of water
    Remineralize to get mineral elements and better taste
    Anti-flooding structure
    Filter lifetime LED light indicator
    Dual outlet to deliver purified water for cleaning and direct drinking purposes
  • Optional Faucet Types Single-handle faucet
    Double-handle faucet
    LED ring faucet
    Smart display faucet
Request a Quote
Model Options
1000GPD Reverse Osmosis System with Remineralization

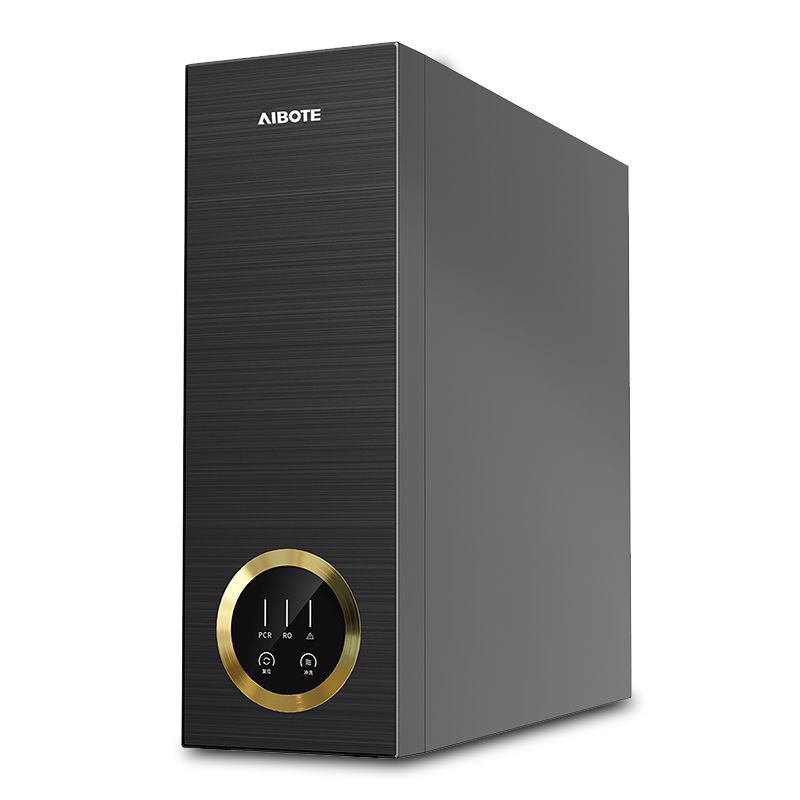

  • Model ABT-RO1901J
    (with double-handle smart display faucet)
  • Filter cartridge PCT+RO
Request a Quote
1000GPD Reverse Osmosis System with Remineralization

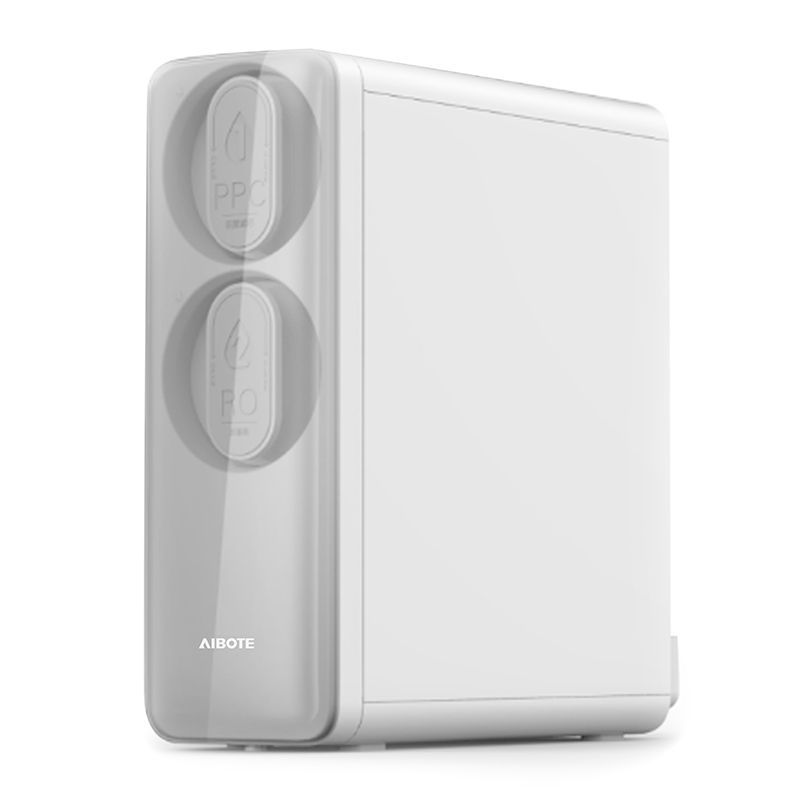

  • Model ABT-RO1901D
  • Filter cartridge PCT+RO
Request a Quote
1000GPD Reverse Osmosis System with Remineralization

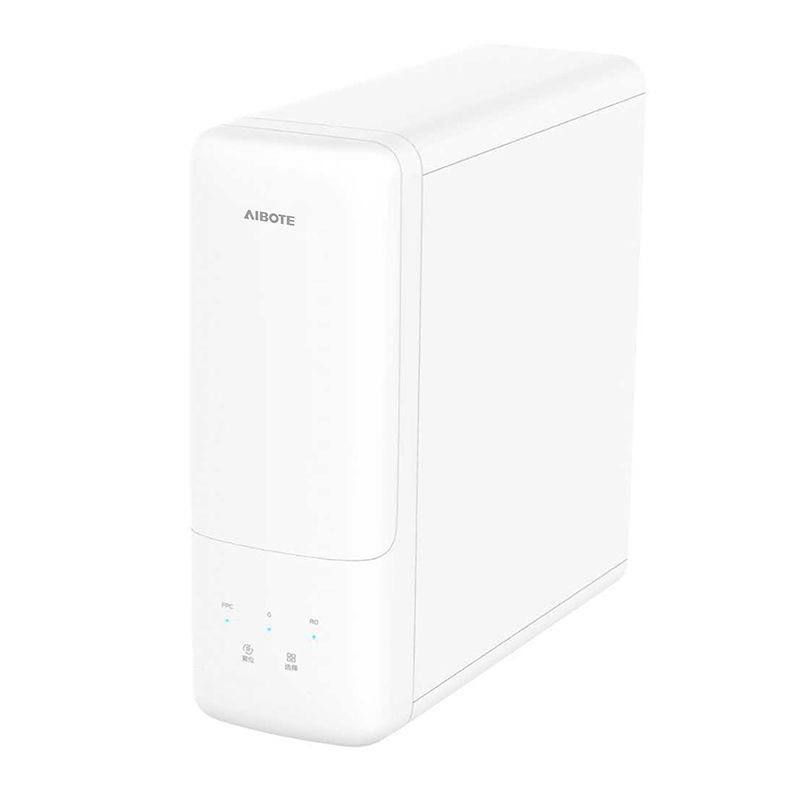

  • Model ABT-RO1901F
  • Filter cartridge PCT+RO
Request a Quote
1000GPD Reverse Osmosis System with Remineralization

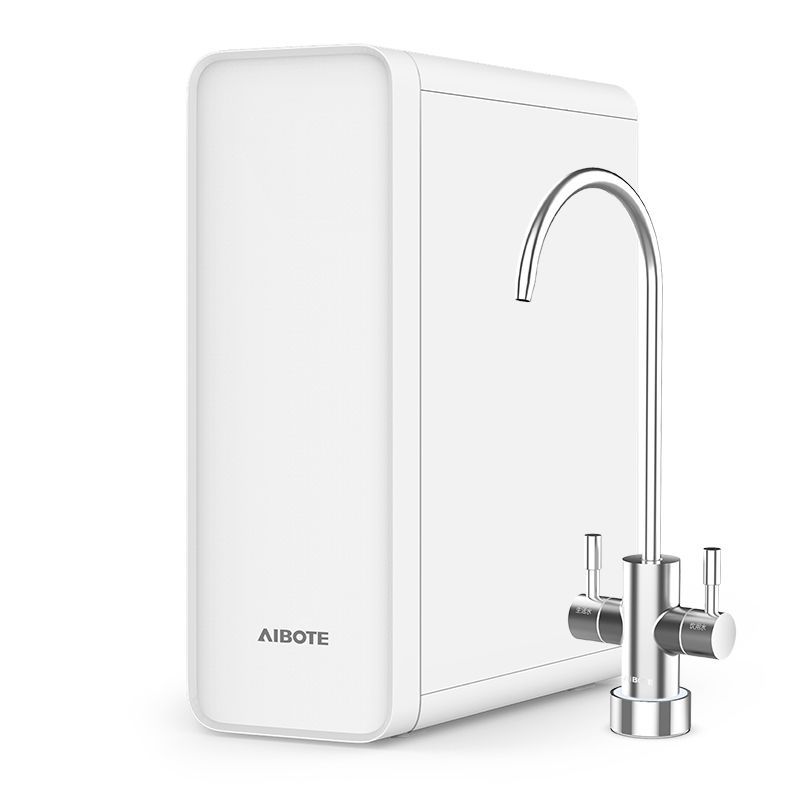

  • Model ABT-RO1901K
  • Filter cartridge PCT+RO
Request a Quote
Features of 1000GPD Remineralizing RO System

Double water circuits, high flow rate
Aibote’s remineralizing RO water filter system features two water circuits that can deliver filtered water (undrinkable) and purified water (drinkable). The flow rate of purified water reaches 1000GPD, which means you can fill a cup of 150 ml within 3.5 seconds, definitely meeting household drinking demands. What’s more, the flow rate of filtered water is even faster than the purified one.

Filtered water and purified water, versatile use
Aibote’s RO water filter system is able to deliver both filtered water and purified water. Filtered water refers to the water flowing through PCT cartridge, during which larger particles like sediments, sand and rust have been removed. The water is not drinkable, but can be used to wash meat, fruit and vegetables.

Purified water refers to the water flowing through both PCT and RO cartridge. All impurities (0.0001μm-0.001μm) have been filtered out, such as heavy metal ions, salt, some bacteria and viruses. After that, minerals will be added to keep you healthy.

Add minerals, tastier and healthier
The pores of RO membrane are too small that will filter out almost all metal ions, including salutary minerals, such as calcium, magnesium, ferrum and zinc, with only water molecules flowing through. After being purified, the water tastes flat. To make the water healthier and tastier, Aibote has added T33 filter into the RO water filter system to achieve remineralization and add salutary micronutrients, like selenium and strontium, into the water.

  • The remineralizing RO water filter system is equipped with integrated water circuit to prevent water leakage. Furthermore, an anti-flooding sensor is installed to further protection against water leakage;
  • Unique noise-reduction design to keep noise level smaller than 50dB;
  • Small footprint under the sink leaves enough space for other items;
  • The remineralizing RO water system is equipped with filter lifetime indicator on the system body and LED ring faucet.
Specifications
Model ABT-RO1901J
Dimensions 365*135*369mm
Flow rate 1000GPD (2.60L/min) (400-1200GPD optional)
Filter cartridge PCT+RO
Filtration stage 5-stage
Filter lifetime PCT: 6-12 months RO: 24-60 months (depending on the quality of water source)
Filter cartridge type Disposable filter cartridge
Voltage 24V
Power 100W (depending on water flow rate)
Feed water pressure 0.1-0.4MPa
Working pressure 0.4-0.8MPa
Feed water temperature 5-38℃
Ambient temperature 4-40℃
Water output Single outlet: 6000L (two outlets: 6000L+6000L)
Optional faucet Single-handle faucet Double-handle faucet Smart display faucet LED ring faucet
Functions (customizable) Filter lifespan indicator Malfunction alert "Flush" button "Reset" button
Water leakage alert Full screen flashing, with beeping

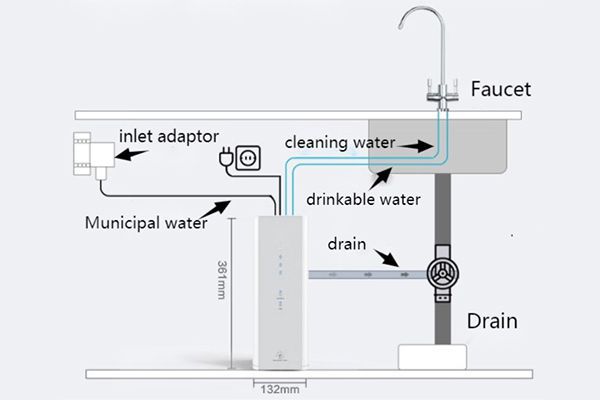

Water Filter System Installation and Filter Cartridge Replacement
Water Filter System Installation and Filter Cartridge Replacement

Easy installation, DIY installation

Water Filter System Installation and Filter Cartridge Replacement

Make economic sense, environmentally friendly (no need for bottled water, less plastic waste)

Water Filter System Installation and Filter Cartridge Replacement

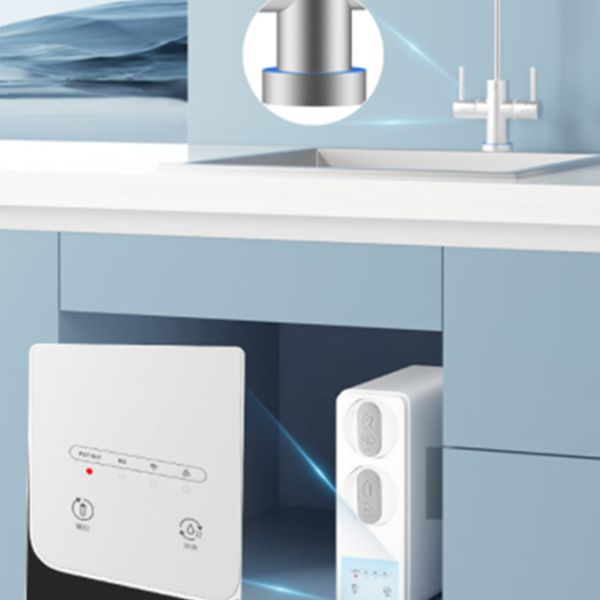

Filter lifetime indicator

Water Filter System Installation and Filter Cartridge Replacement

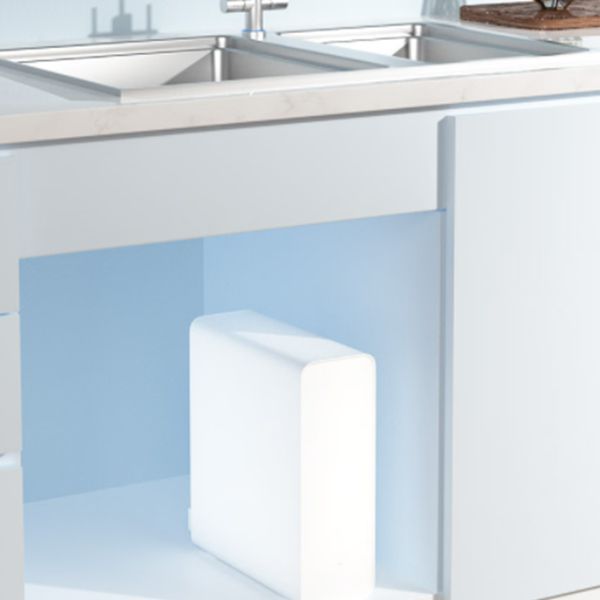

Compact and tankless design preserve enough under-sink storage space for other items

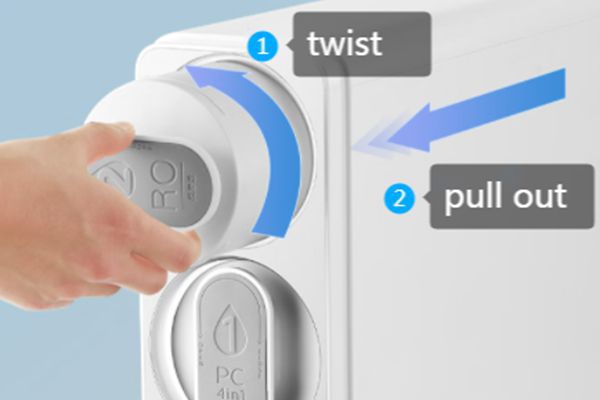

Easy replacement of filter cartridge

Easy replacement of filter cartridge
1. Turn the knob counterclockwise and pull out the expired filter
2. Insert a new filter and turn the knob clockwise
3. Put back the front cover and the filter replacement is done

Certificates
  • China Water Efficiency Label
  • CE Certificate
  • Validation of National Health Commission of PRC
  • NSF International
  • ISO 9001 Quality Management System

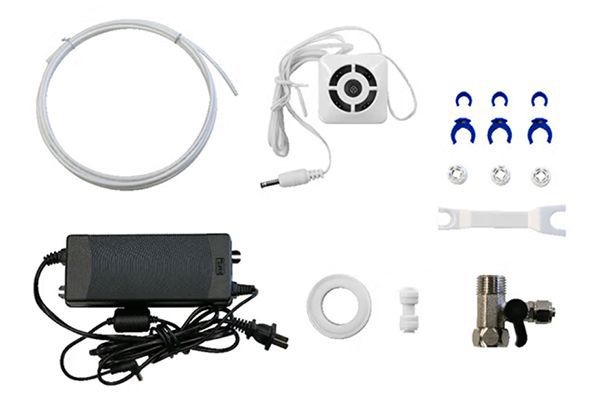

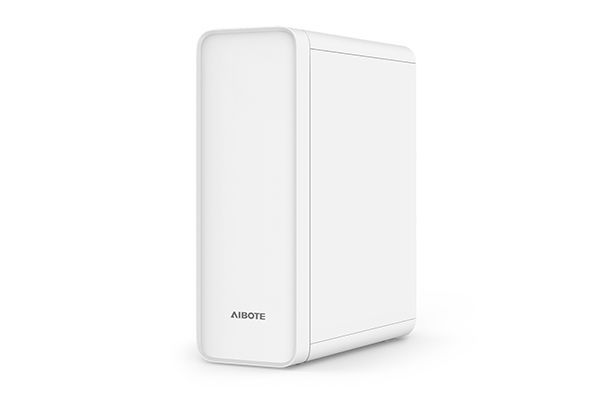

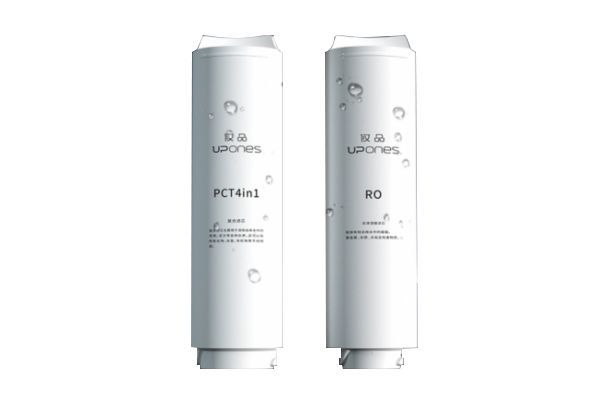

Remineralizing RO water system and parts
  • Alkaline RO Water Filter System with Components
  • Alkaline RO Water Filter System with Components
  • Alkaline RO Water Filter System with Components
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed. Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
