500GPD Reverse Osmosis System with Alkaline Filter

Under Sink RO Water Filtration System

  • Home
  • Products
  • Under Sink RO Water Filtration System
  • Alkaline RO Water Filter System
  • 500GPD Alkaline RO System
500GPD Reverse Osmosis System with Alkaline Filter
  • Filtration System PPC filter: PP+C+PP composite filter
    RO filter: Reverse osmosis membrane filter
    T33 + Alkaline filter: T33 carbon block with alkaline
  • Flow Rate 500GPD (1.3L/min), flow rate availability 400GPD-600GPD
  • Purified/Drain Ratio 2:1 pure to drain
  • Personalized Functions Alkaline substances to neutralize weak acid water
    Remineralize to get necessary mineral elements and better taste
    Anti-flooding sensor
    Custom-specific display screen to show water TDS and filter cartridge life
  • Optional Faucet Types Single-handle faucet
    Double-handle faucet
    LED ring faucet
    Smart display faucet
Request a Quote
Model Options
500GPD Reverse Osmosis System with Alkaline Filter

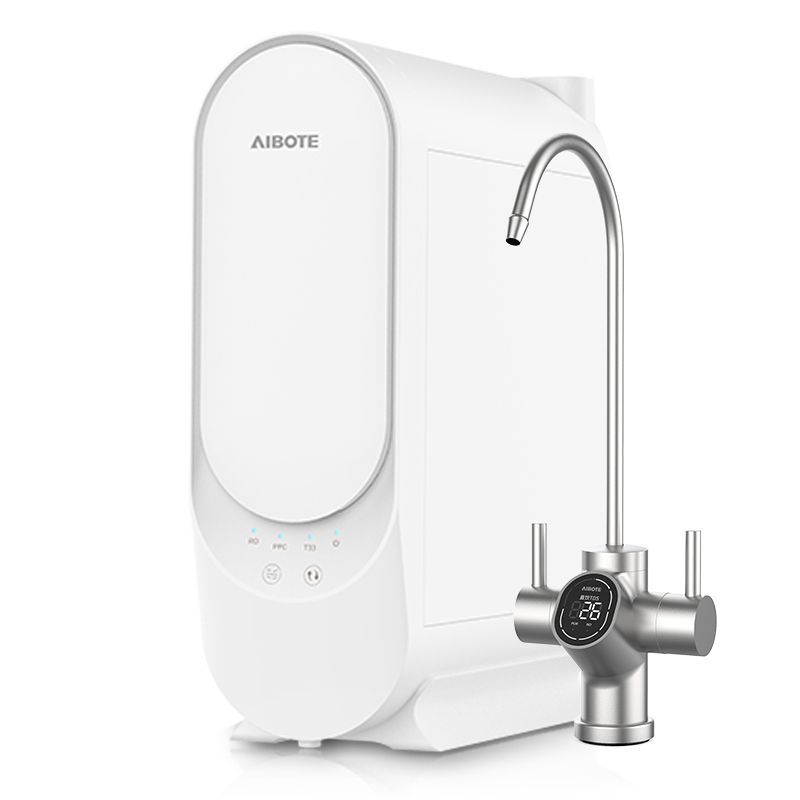

  • Model ABT-RO1915
    (with double-handle smart display faucet)
  • Filter cartridge PPC+RO+T33+Alkaline
Request a Quote
500GPD Reverse Osmosis System with Alkaline Filter

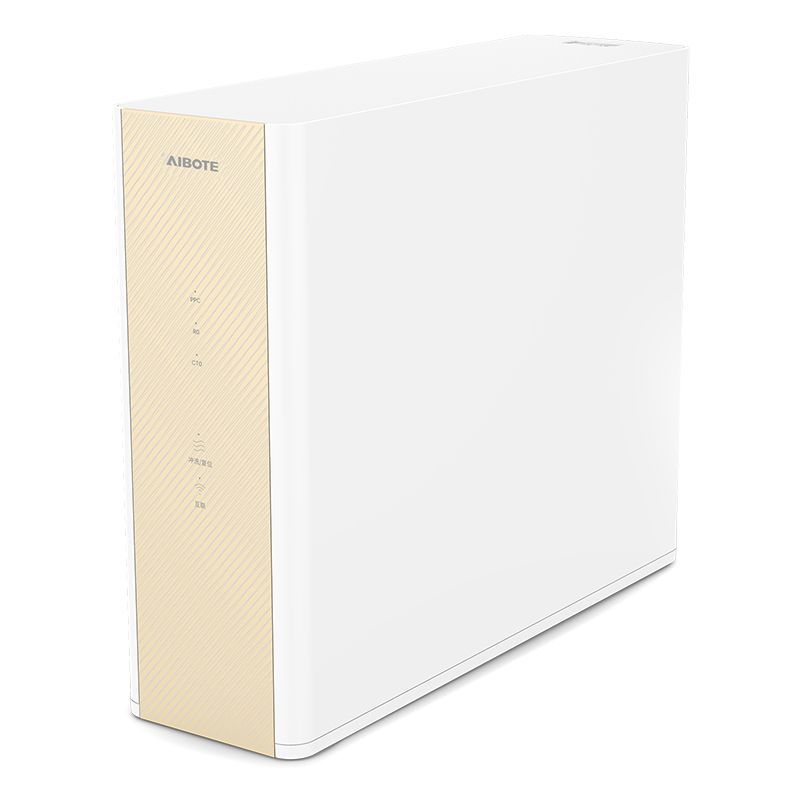

  • Model ABT-RO1721A
  • Filter cartridge PPC+RO+T33+Alkaline
Request a Quote
500GPD Reverse Osmosis System with Alkaline Filter
  • Model ABT-RO1721B
  • Filter cartridge PPC+RO+T33+Alkaline
Request a Quote
500GPD Reverse Osmosis System with Alkaline Filter
  • Model ABT-RO1721D
  • Filter cartridge PPC+RO+T33+Alkaline
Request a Quote
Features of 500GPD Alkaline RO System

Adding alkaline substances to neutralize weak acid water for more healthy water
According to doctors and nutritionists, long-term drinking of weak-acidic water would increase the risk of developing many diseases like arteriosclerosis and high blood pressure. Furthermore, eyesight would fail and skins begin to turn dark. Teeth and bones in our body would become weak as a result of long-term drinking weak-acidic water. Our 500GPD alkaline RO system is designed to solve this challenge by adding alkaline substances into the T33 filter cartridge to keep pH value in water within a range between 7.35-7.45, thereby helping organs in our body work properly.

More minerals, better taste and higher nutrition
In addition, this RO water filter system can add minerals essential to human body back into water. Since RO membrane has a high filtration precision of 0.0001um that can remove all metal ions, including those beneficial to people’ health, such as Ca, Mg, Fe and Zn, the purified water processed by RO membrane filter is insipid. That’s why the RO system is equipped with a T33 filter cartridge that can help refill the water with elements like Se and Sr essential to human beings. These elements are critical to children’s growth and old men of weak bones

  • Specially-designed integrated water circuit coupled with leak detector can prevent water leakage
  • You will be informed of the filtration cartridge lifetime via the display in a timely manner, whenever you want to know
  • Aibote's patented double-layer shock absorption design ensures quiet operation by keeping the noise level below 50dB
Specifications
Model ABT-RO1915
Dimensions 456.6*135.7*359mm
Flow rate 500GPD(1.31L/min) (400~600GPD optional)
Filter cartridge PPC+RO+T33+Alkaline
Number of filtration stage 5-stage
Filter cartridge lifetime PPC: 6-12 months
RO: 24-60 months (depending on quality of water source) T33: 12-24 months
Filter cartridge type Disposable filter cartridge
Voltage 24V
Power 75W
Feed water pressure 0.1-0.4MPa
Operation pressure 0.4-0.8MPa
Feed water temperature 5-38℃
Ambient temperature 4-40℃
Rated water output Single outlet: 6000L Dual outlet: 6000L+6000L
Optional faucet Single-handle faucet Double-handle faucet LED ring faucet Smart display faucet
Functions (customizable) Filter cartridge lifetime indicator Faults indicator "Flush" button "Reset" button
Water leakage alert All indicators are flashing with beeping
Water Filter System Installation and Filter Cartridge Replacement
Water Filter System Installation and Filter Cartridge Replacement

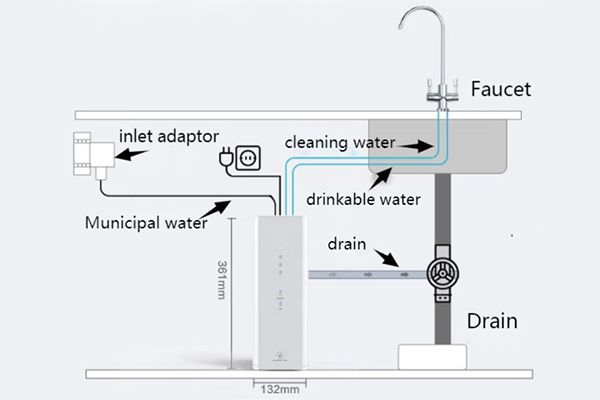

Simple installation of under sink water filter system, DIY installation is possible

Water Filter System Installation and Filter Cartridge Replacement

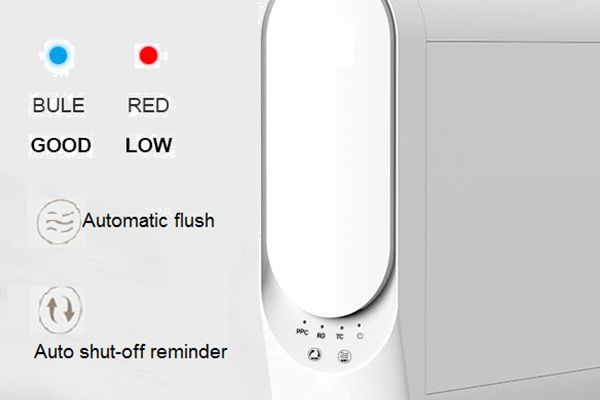

Easy installment and real-time monitoring of filter cartridge lifetime

Water Filter System Installation and Filter Cartridge Replacement

Our eco-friendly RO water filter system could help reduce the consumption of bottled water, thus saving your money and protecting the environment from plastic waste.

Water Filter System Installation and Filter Cartridge Replacement

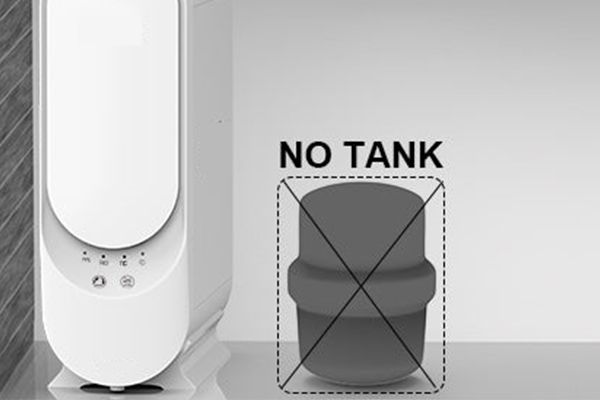

Compact structure of the under sink water filter system enables it to be perfectly fit in the tight space of your kitchen. Tankless design maximizes the utilization rate of the under sink space.

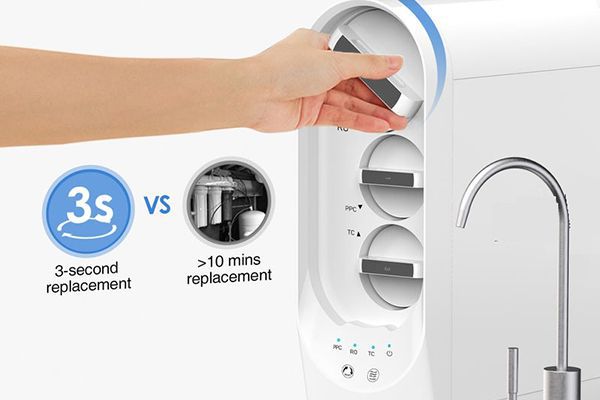

Easy replacement of filter cartridge

Easy replacement of filter cartridge
1. Turn the knob counterclockwise and pull out the expired filter
2. Insert a new filter and turn the knob clockwise
3. Put back the front cover and filter replacement is done

Certificates
  • China Water Efficiency Label
  • CE Certificate
  • Validation of National Health Commission of PRC
  • NSF International
  • ISO 9001 Quality Management System

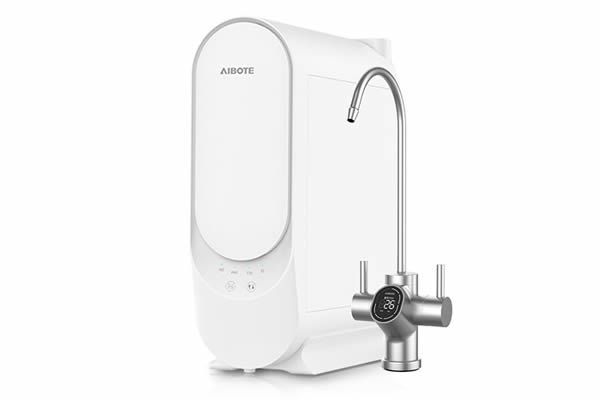

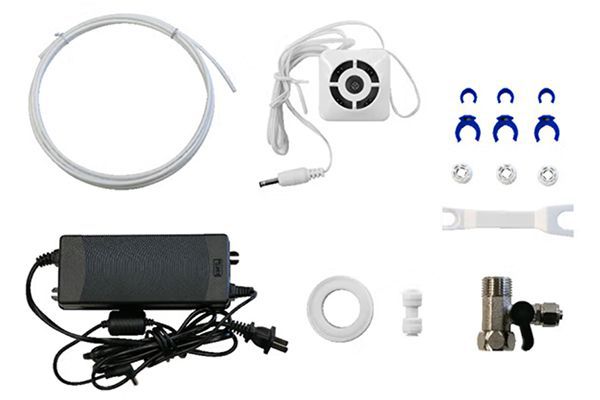

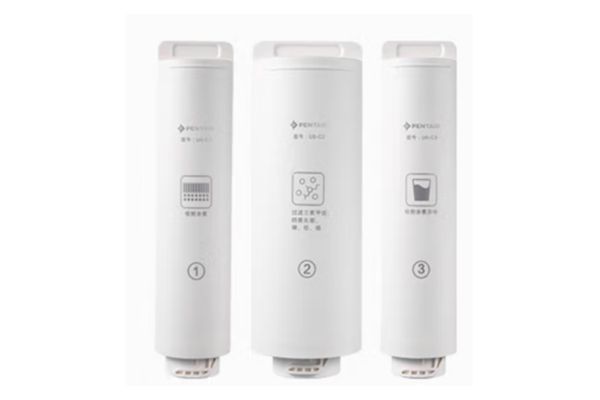

Alkaline RO Water Filter System with Components
  • Alkaline RO Water Filter System with Components
  • Alkaline RO Water Filter System with Components
  • Alkaline RO Water Filter System with Components
Our manufacturing plant is made up of 4 main workshops: injection molding workshop, RO membrane rolling workshop, waterway board assembly workshop and whole unit assembly workshop. And it comes equipped with 6 intelligent injection molding lines, 3 dust-free automatic filter membrane production lines, 2 automatic filter cartridge assembling lines and 4 water filter assembling lines. At injection molding workshop, there are 57 robotic manipulators with mold monitoring system that shows the status of molds in real time. In RO rolling workshop, there are anti-UV iso-temperature warehouse to store the filters. In waterway board workshop, you will witness AIBOTE pioneering waterway board production and assembly process. In whole unit assembly workshop, standardized assembly process and inspection procedure is strictly performed. Please rest assured every Aibote product carries with Aibote people’s most attention and efforts!
