- Filtration System PPC filter: PP+C+PP composite filter
RO filter: Reverse osmosis membrane filter
T33 filter: T33 carbon block with alkaline - Flow Rate 500GPD (1.3L/min), flow rate availability 75GPD-500GPD

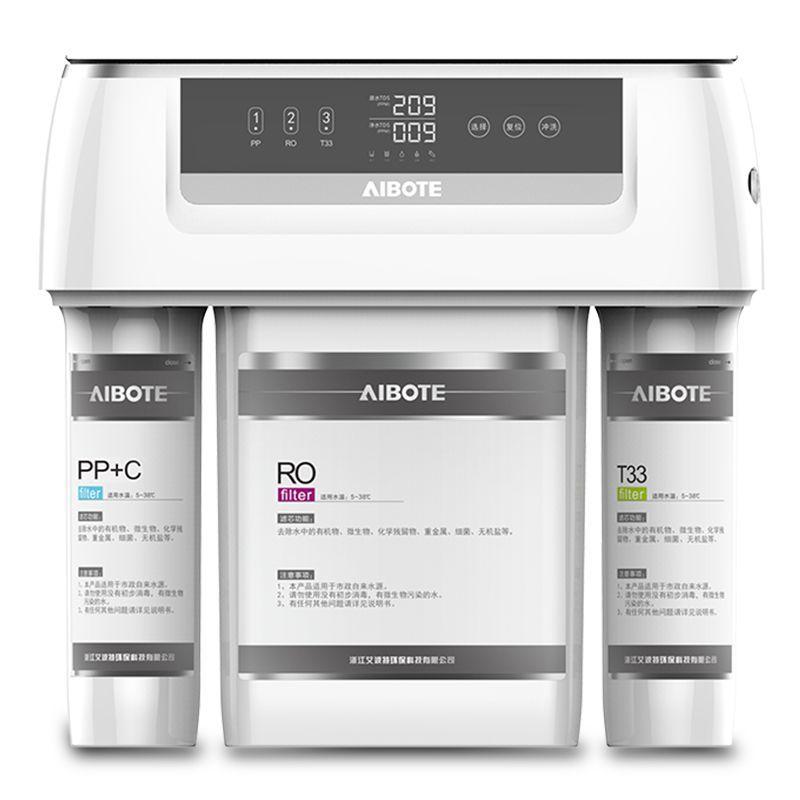

- Personalized Functions LCD display screen to show TDS and filter cartridge life
With alkalization and remineralization
Ultra-filtration filter cartridge can be configured
Dual outlet to deliver purified water for cleaning and direct drinking purposes
- Model ABT-RO1717A-500G
- Dimensions 418X150X397mm
- Filter cartridge PPC+RO+T33+Alkaline
- Number of filtration stage 4-stage / 5-stage
- Model ABT-RO1717B-500G
- Dimensions 418X150X397mm
- Filter cartridge PPC+RO+T33+Alkaline
- Number of filtration stage 4-stage / 5-stage

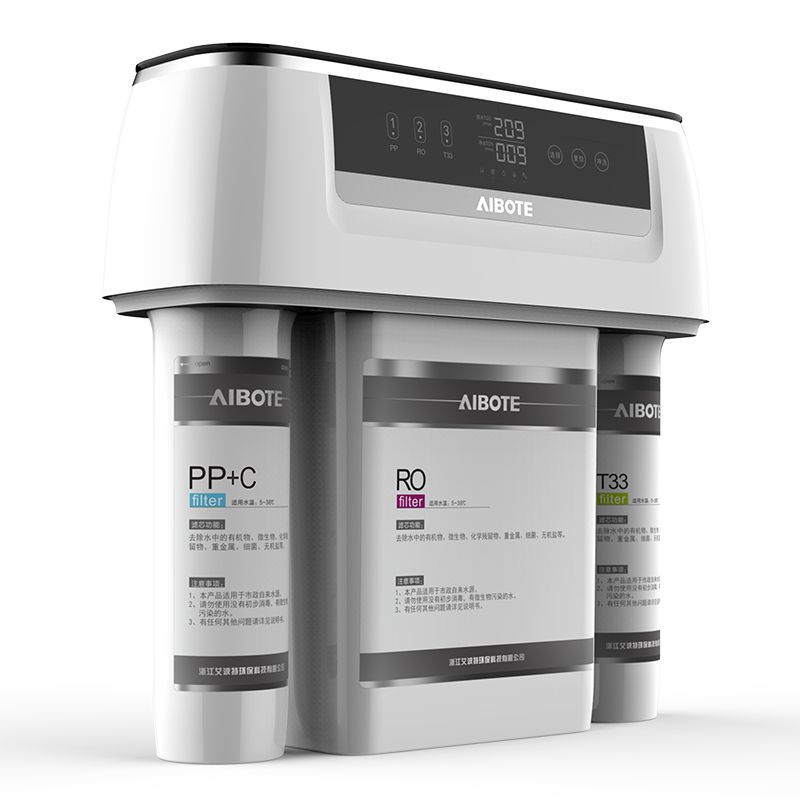

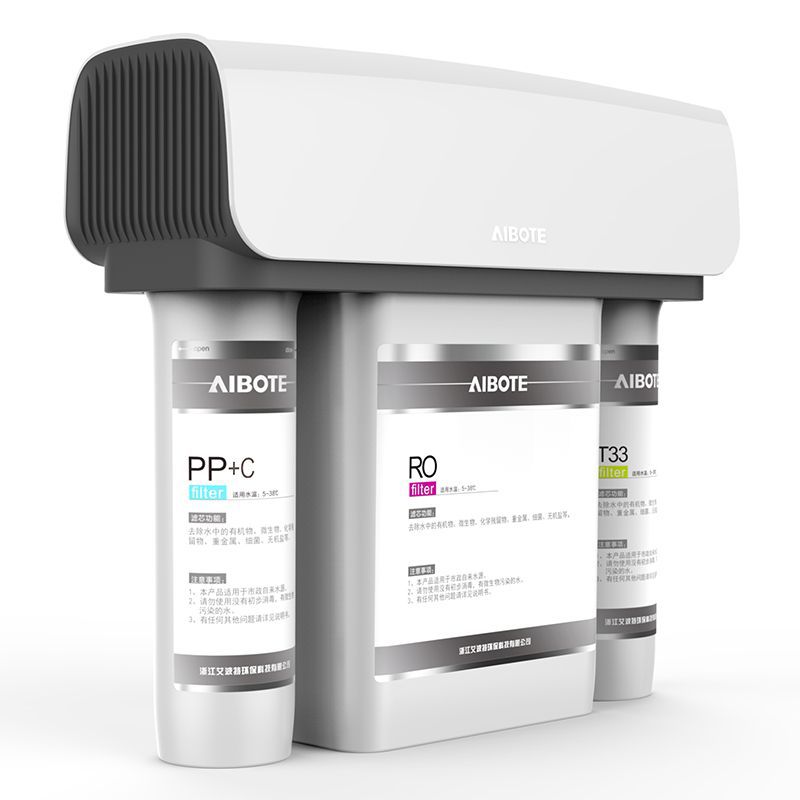

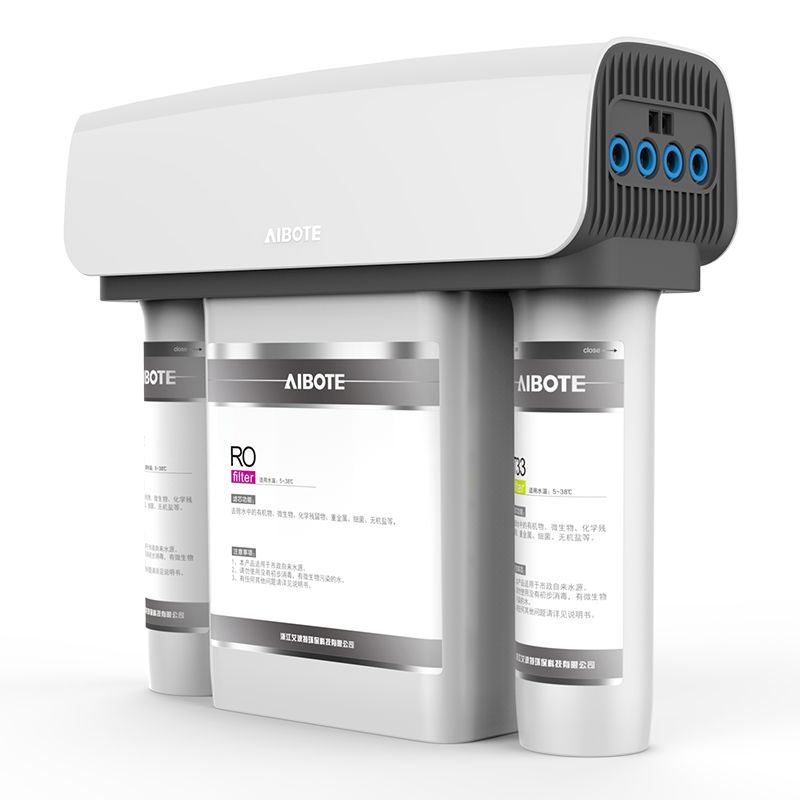

Reverse osmosis system with tankless design for highly purified drinking water

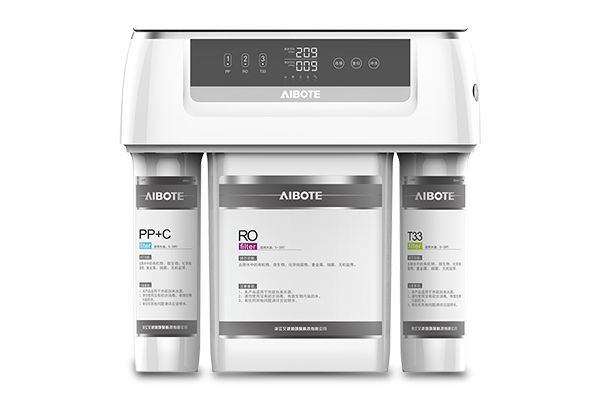

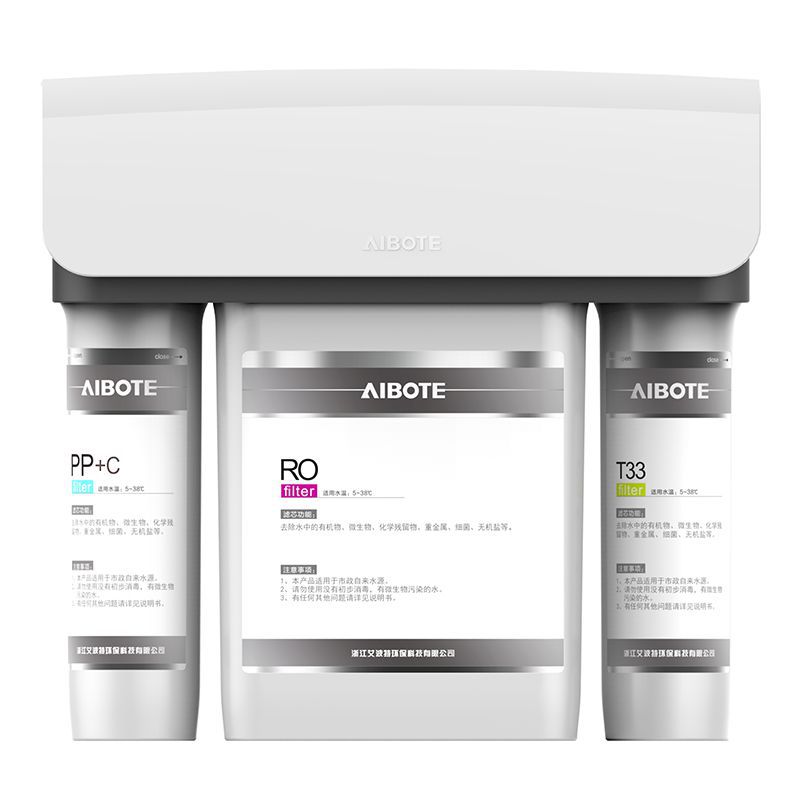

This RO water filter system is a kind of conventional water purification system with three separate filters (PPC, RO, T33) to deliver purified drinking water. The PPC filter consists of PP cotton, a compressed activated carbon block and a second layer of high-precision PP cotton that can remove sand, rust, sediments and odors. And other contaminants like heavy minerals, bacteria and virus would be eliminated by the RO membrane filter with filtration precision of 0.0001um-0.001um. Nothing but insipid water is left after these processes. Therefore we place a T33 filtration cartridge that can add minerals essential to people’s health back into water. After that, you would have weak alkaline drinking water.

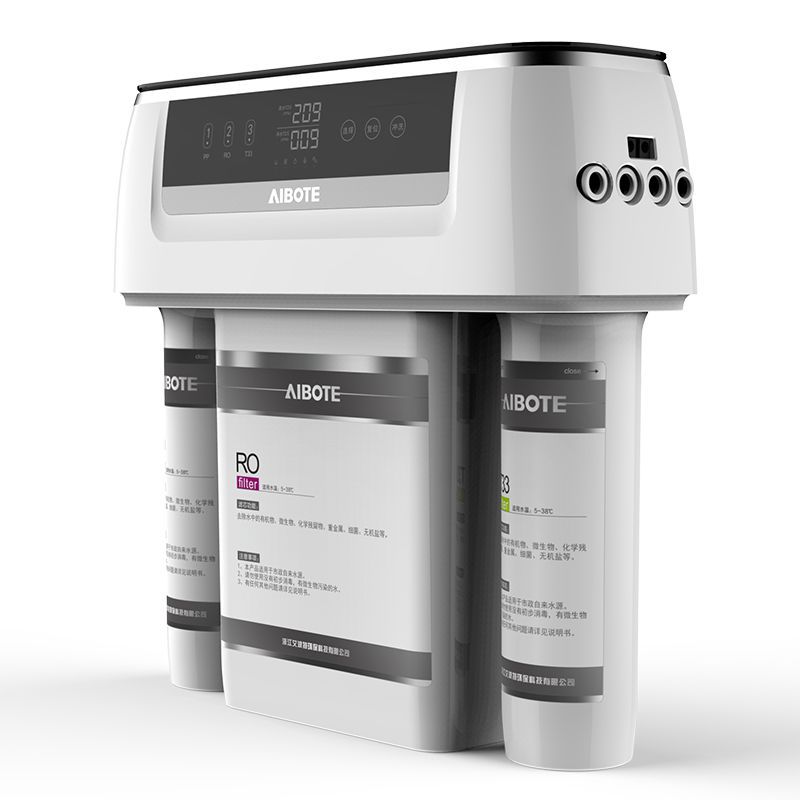

Two outlets for dual use
This tankless water filter system has two water circuits to deliver two types of filtered water. The water filtered through PPC filter cartridge is used for washing fruits and vegetables, while the water filtered by PPC+RO+T33 composite filter is safe to drink.
- Specially-designed integrated water circuit effectively prevents water leakage
- Fast-flow, fresh and great tasting water perfect for drinking and cooking
- Quiet operation with noise level of less than 40dB
- Small size of the tankless water filter system saves space in your kitchen

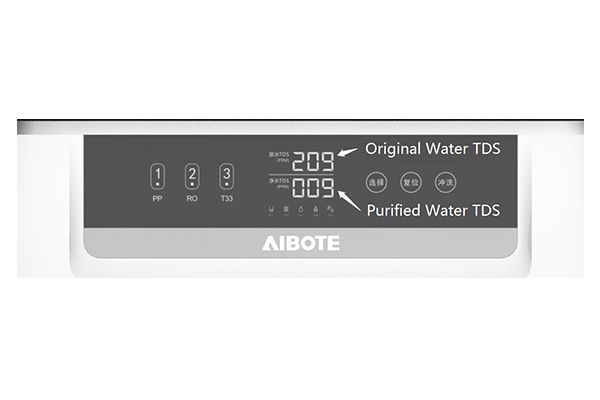

- Real-time monitoring of water TDS, which can be read via smart display faucet
- Timely reminding of filter cartridge lifetime to ensure safe and healthy drinking water
| Model | ABT-RO1717A-500G |
| Dimensions | 418X150X397mm |
| Flux | 500GPD(1.31L/min) (75GPD-500GPD optional) |
| Flow rate | 1.31L/min |
| Filter cartridge | PPC+RO+T33+Alkaline |
| Number of filtration stage | 4-stage / 5-stage |
| Filter cartridge lifetime | PPC: 6-12 months RO: 24-60 months (depending on quality of water source) T33: 12-24 months |
| Filter cartridge type | Disposable filter cartridge |
| Voltage | 24V |
| Power | 75W (depending water flow rate) |
| Feed water pressure | 0.1-0.4MPa |
| Operation pressure | 0.4-0.8MPa |
| Feed water temperature | 5-38℃ |
| Ambient temperature | 4-40℃ |
| Rate water output | Single outlet: 6000L Dual outlet: 6000L+6000L |

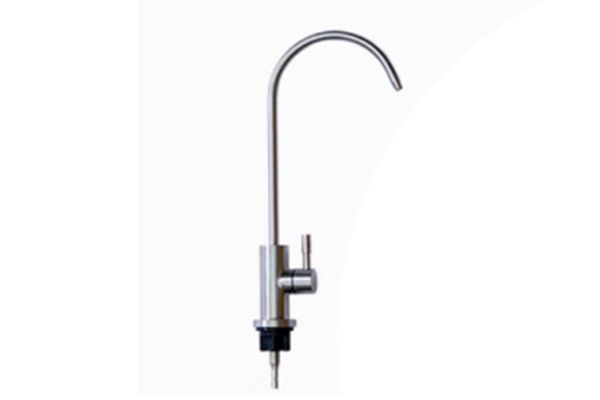

| Optional faucet | Single-handle faucet Double-handle faucet LED ring faucet Smart display faucet |
| Functions (customizable) | Raw water and purified water TDS display Filtration cartridge lifetime display Water processing indicator Faults indicator "Flush" button "Reset" button |
| Water leakage alert | All indicators are flashing with beeping |

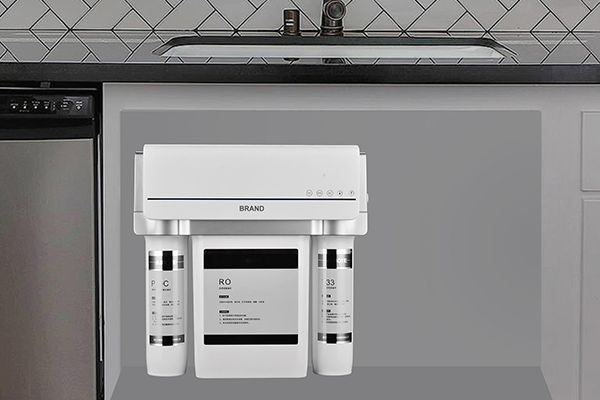

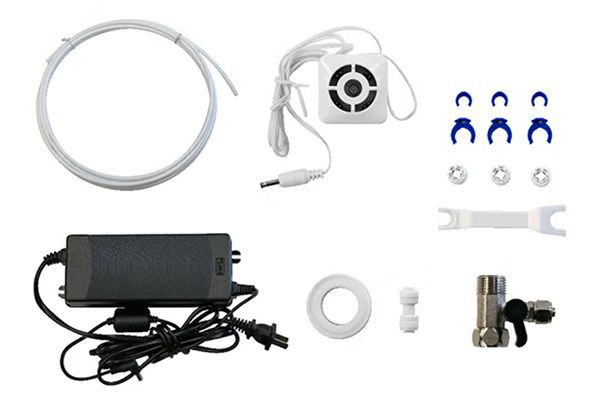

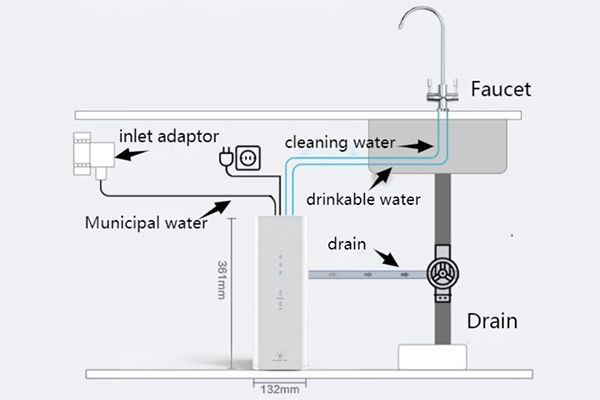

Simple installation of tankless water filter system, DIY installation is possible
Easy replacement of filtration cartridge
Our eco-friendly RO water filter system could help reduce the consumption of bottled water, thus saving your money and protecting the environment from plastic waste.
The compact design allows this water filter system to fit into even a narrow undersink space.
Real-time monitoring of filter cartridge lifetime
- China Water Efficiency Label
- CE Certificate
- Validation of National Health Commission of PRC
- NSF International
- ISO 9001 Quality Management System
